Optimization hub — — —

Best qualified physical seed

Paired physical decisions raised the formal checkpoint from Q=923.53 to Q=1115.17. The final individually qualified −1.5625 nm hole-ellipticity candidate reached Q=1183.52 at 768.555 nm and is the immutable seed of the corrected offline branch. Its opposite sign was not run before the 5 FC budget became insufficient, so it is not relabeled as a completed paired decision.

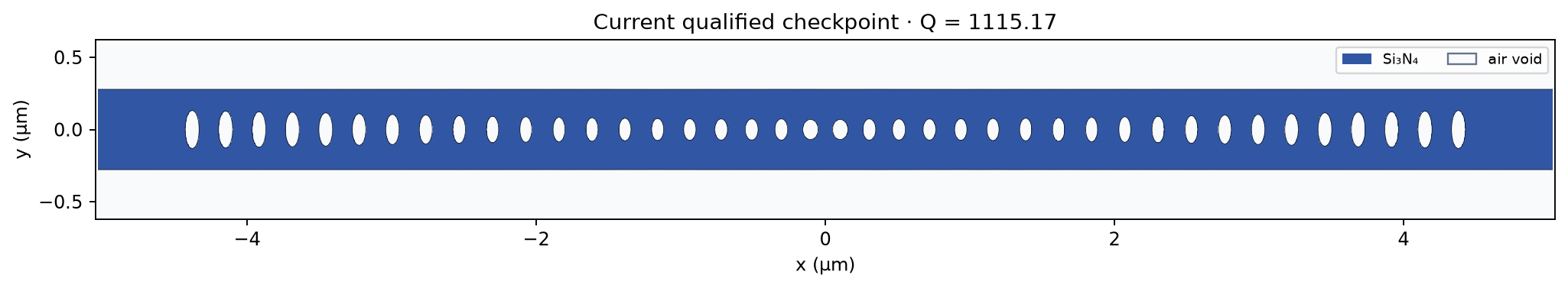

Best qualified geometry
Best qualified geometry at matched axes with the Si₃N₄/air legend. Source and contour hash: current_accepted_geometry_manifest.json.
Best qualified resonant field
Tidy3D XY resonant |E|² at 768.555 nm, per-panel normalized. Source: diagnostic step 20035 retained field output.

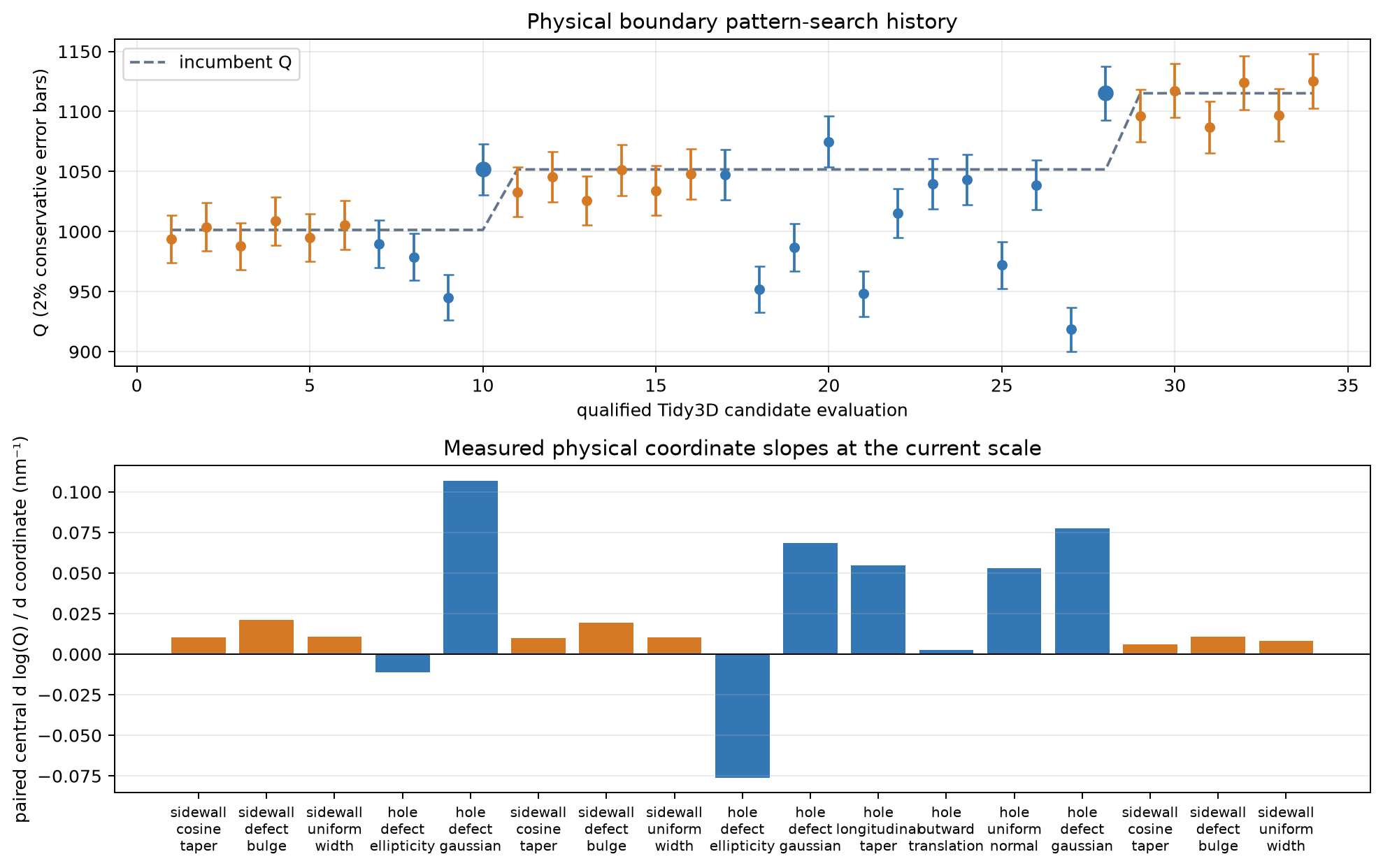

Physical pattern-search convergence
All qualified candidates with the 2% analysis floor. Source: state.json; provenance: physical_pattern_history_manifest.json.

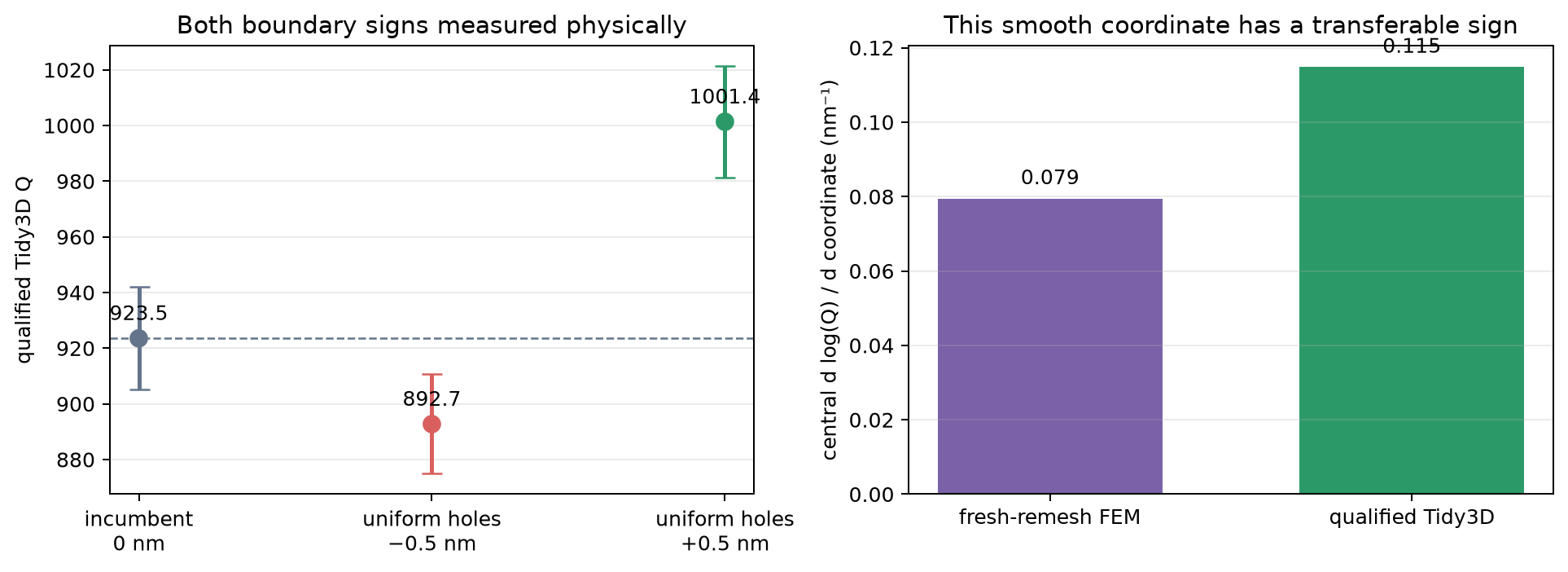

First paired physical Q result
First paired physical sign decision under the fixed Tidy3D protocol.

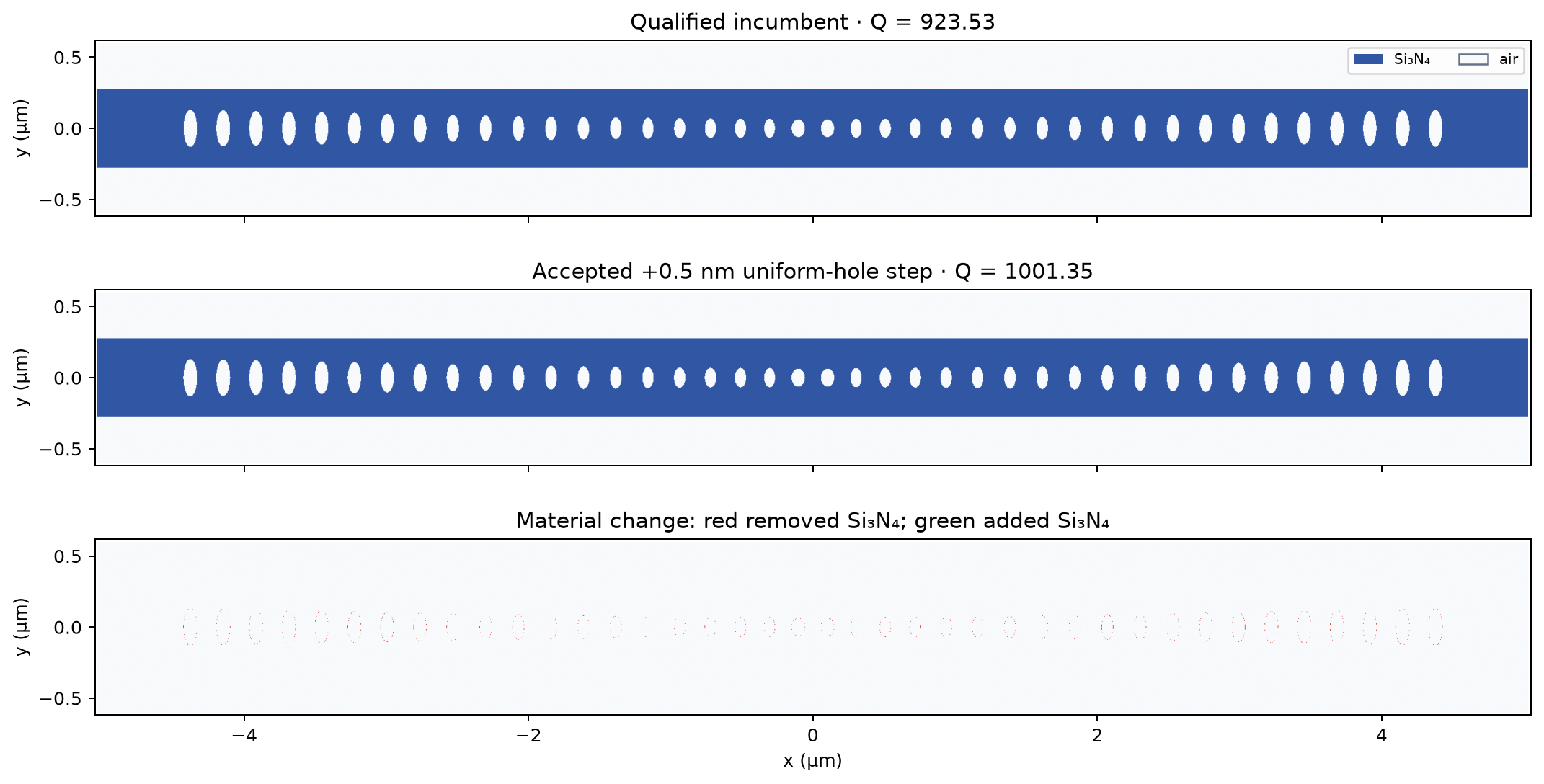

First promoted geometry before and after
First promoted geometry before/after at matched axes and with material-change colors.
First accepted resonant field
First promoted Tidy3D XY resonant |E|² field; field-monitor provenance is retained beside the artifact.

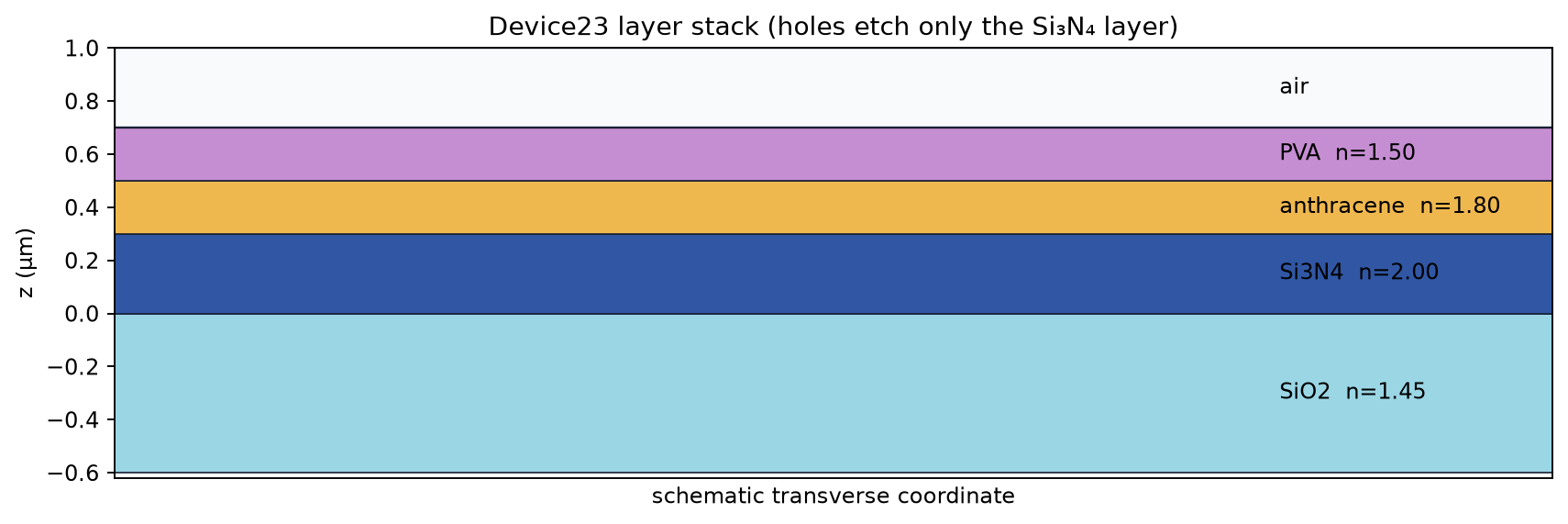

Device layer stack
SiO₂ / patterned Si₃N₄ / anthracene / PVA / air cross-section with layer thicknesses and indices.

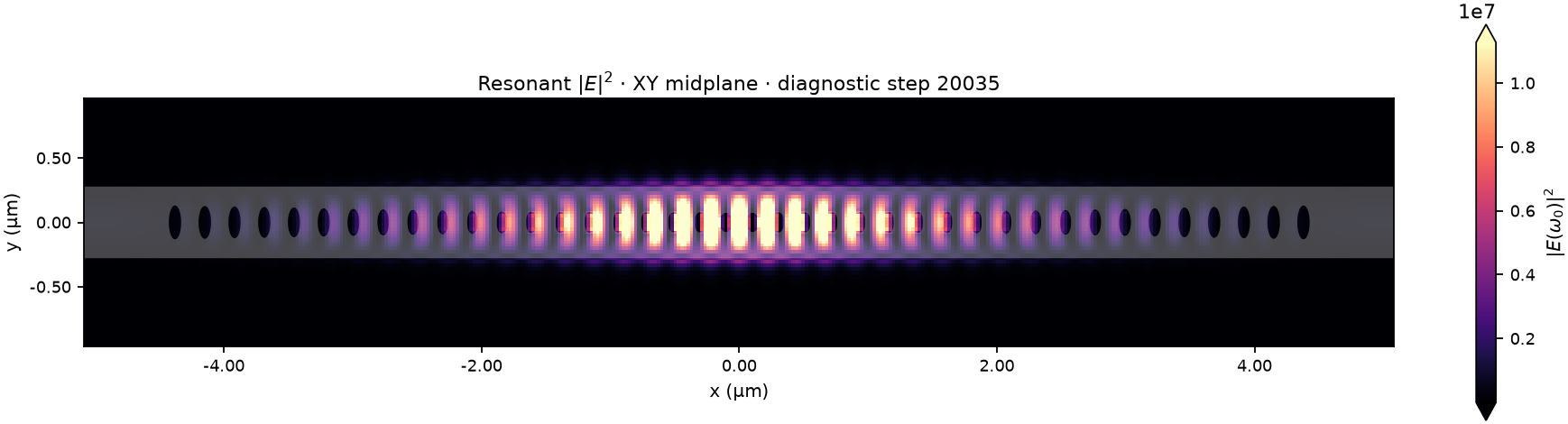

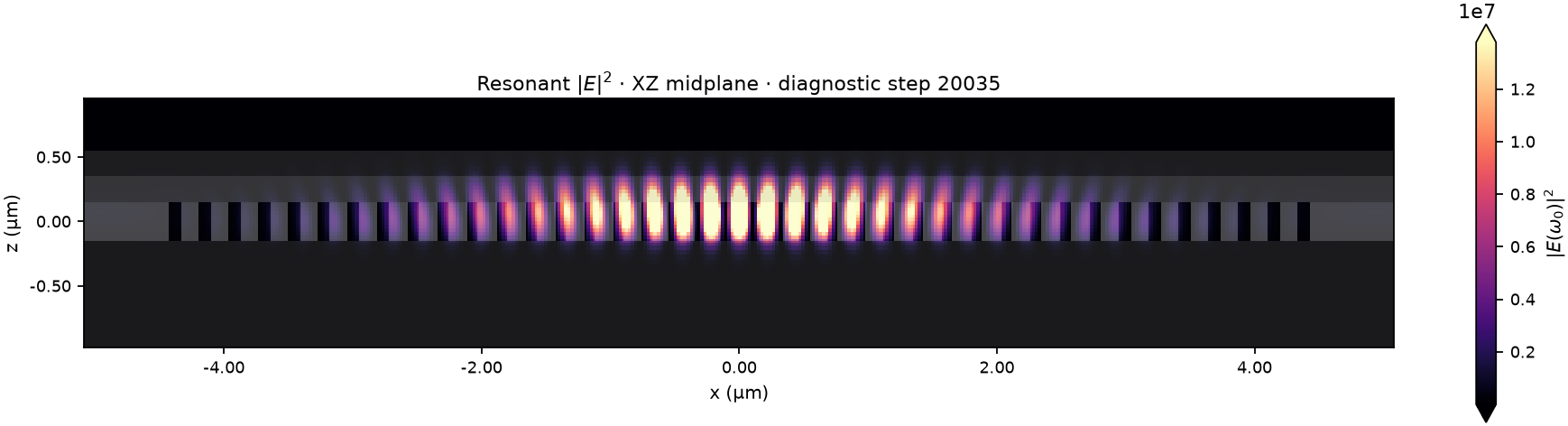

Most recent evaluated Tidy3D field

Most recent XY field Most recent XZ field

These panels update after every candidate evaluation; acceptance is determined from the qualified Q interval, not from field appearance.

Summary

Loading…

Feedthrough constraint

—
Awaiting a resolved channel measurement.
—

Optimization history

#Stage / decisionQVQ/VGuidedTime
—

Fabrication robustness corners

CornerQVQ/VGuidedλ (nm)
No corner data yet.

FDTD history

StepCandidate QIncumbent QAccepted
—

Artifacts

—

Raw MANIFEST / status

—
