ldos-opt · Shaker et al. reproduction

Fab sweep fab-g3 λ=3 R=0.15 running

Dipole at (0,0) in a vacuum slot |x| < 0.5 λ₀ (0.5 μm of free space on each side if λ₀ = 1 μm). Design occupies 0.5 ≤ |x| ≤ 5 λ₀ and |y| ≤ 1 λ₀. Density is optimized in the first quadrant and mirrored through x = 0 and y = 0.

fab-g3 · shifted β=∞ · updated

LDOS / vacuum

1.651

best 2.07 · target ≥ 500

27.34

best 67.84 · target ≥ 50,000

Iteration

160

320 factorizations

Re ω*/ω0

1.008

wall 130.2 s

Length-scale P

0.3307

λ = 3 · erode/dilate

Shifted log-LDOS at Re ω*. Fig. 6 bars (LDOS/vac≥500, Q≥50000) are reference only — this geometry is an open slot.

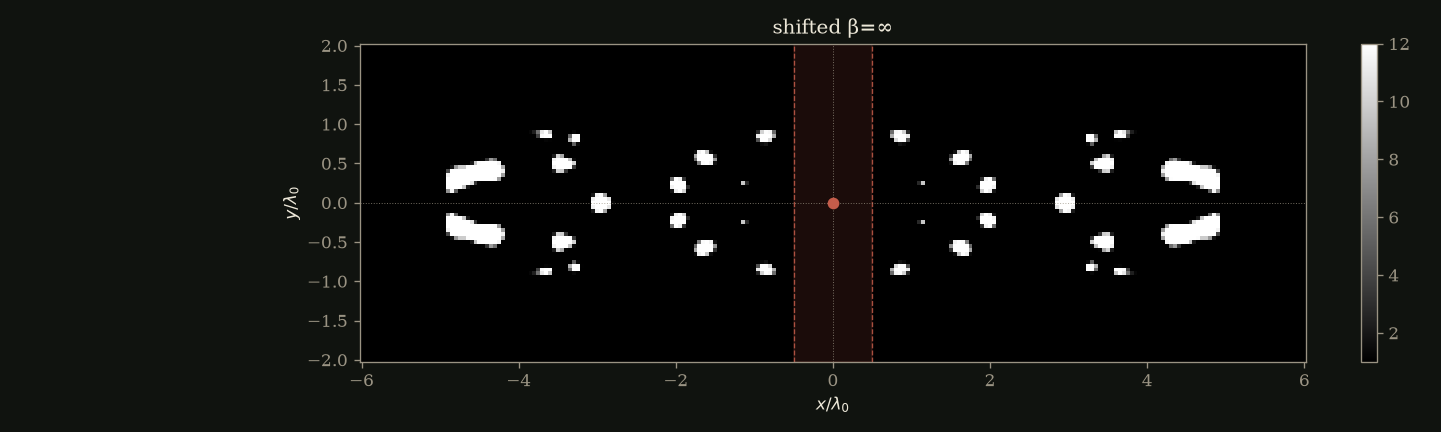

permittivity — ε(x,y), source as red/white dot. Red band is the frozen vacuum strip when present.

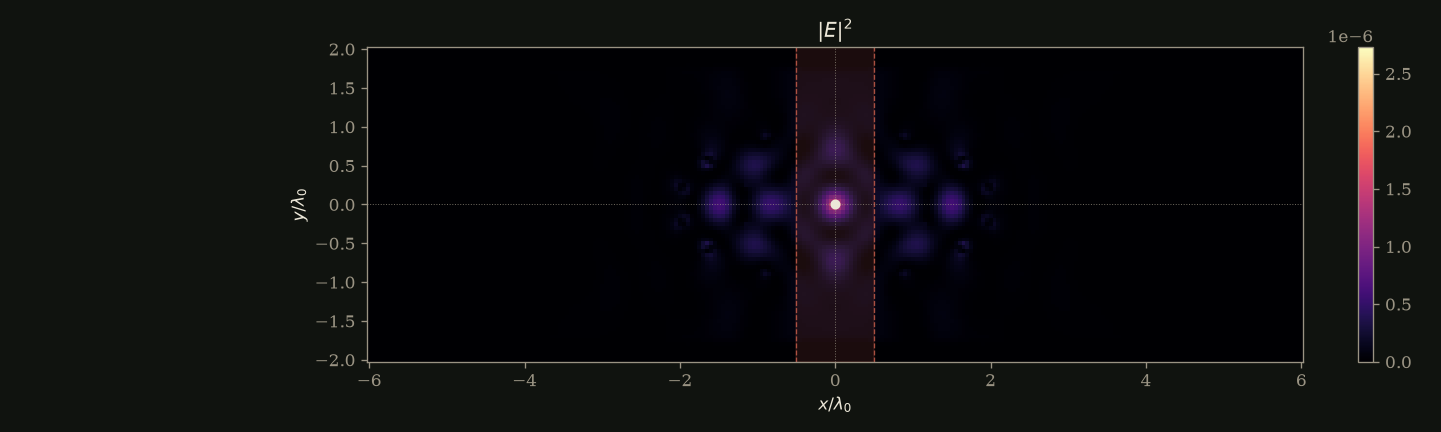

field — |E|² at the evaluation frequency

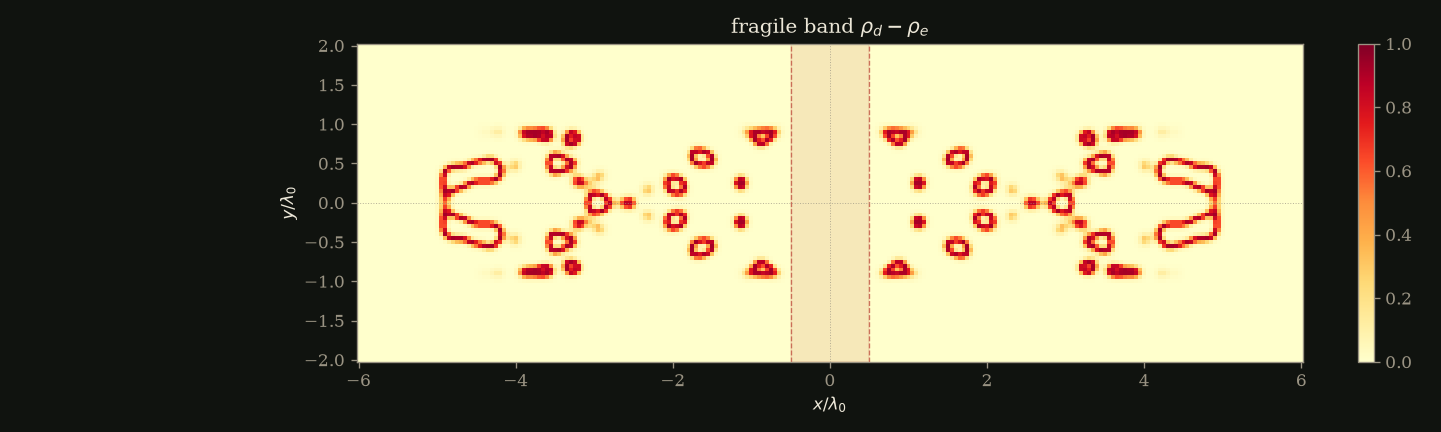

fragile band — Fragile band ρ_dilate − ρ_erode. Speckle lights up; a clean interface is a thin outline.

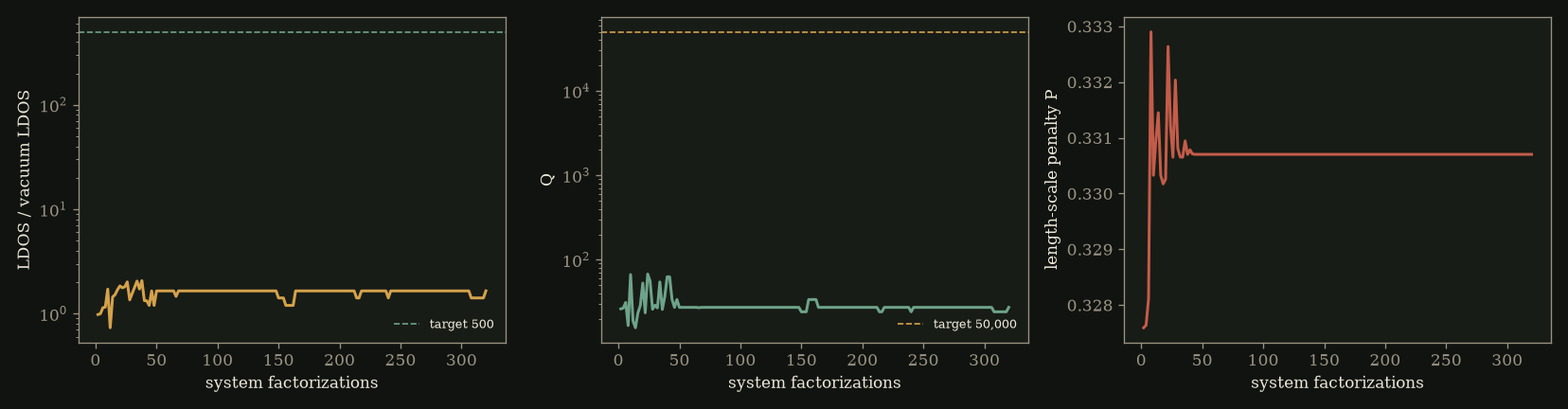

history — LDOS enhancement, Q, and length-scale penalty vs Maxwell-matrix factorizations
