ldos-opt · Shaker et al. reproduction
A crystal slats a=0.40 finished

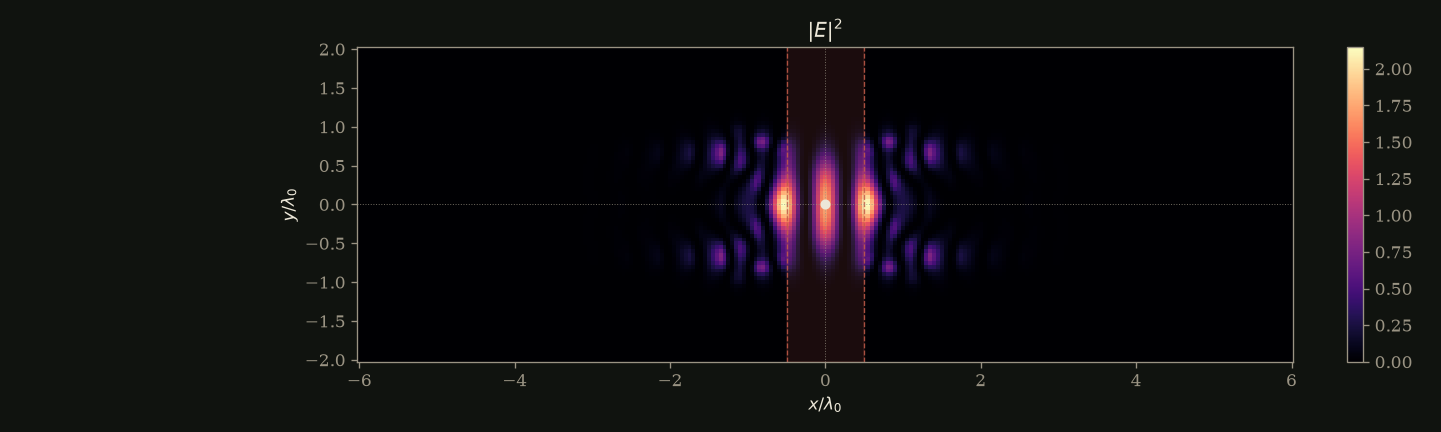

Dipole at (0,0) in a vacuum slot |x| < 0.5 λ0 (0.5 μm of free space on each side if λ0 = 1 μm). Design occupies 0.5 ≤ |x| ≤ 5 λ0 and |y| ≤ 1 λ0. Density is optimized in the first quadrant and mirrored through x = 0 and y = 0. Material ε ∈ [1, 4].

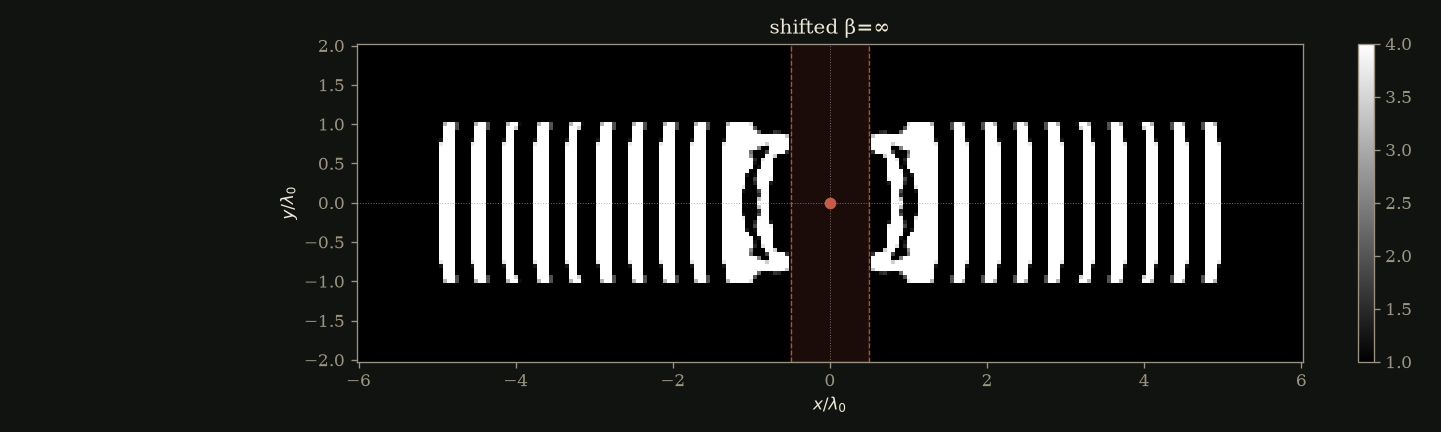

phc-A-a40 · shifted β=∞ · updated
LDOS / vacuum
2.121e+03
best 2.121e+03 · target ≥ 500
Q
3.997e+04
best 3.997e+04 · target ≥ 50,000

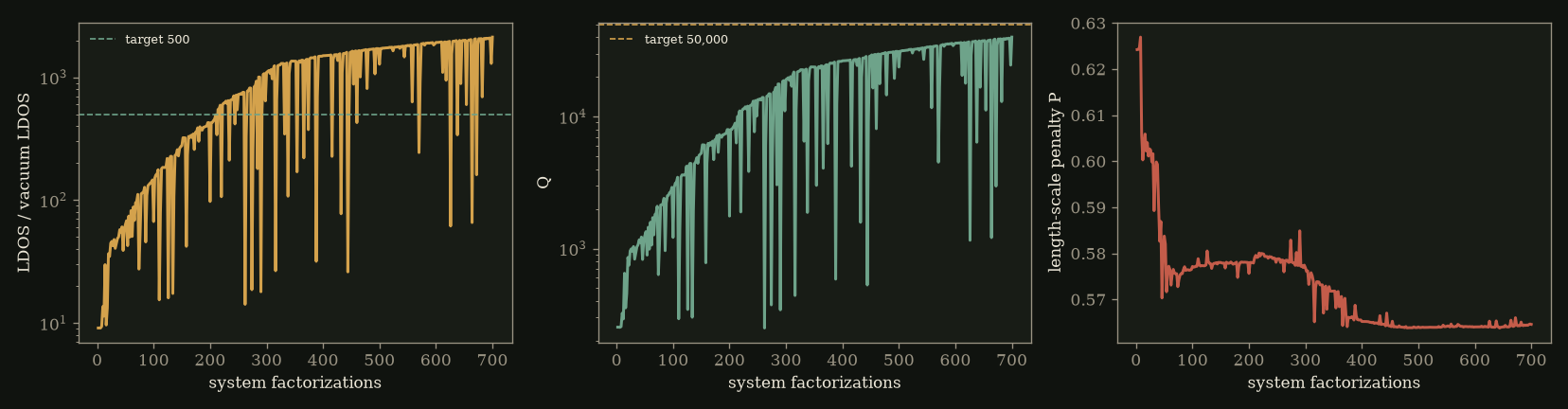

Iteration
350
700 factorizations
Re ω*/ω0
1
wall 274.2 s
Length-scale P
0.5646

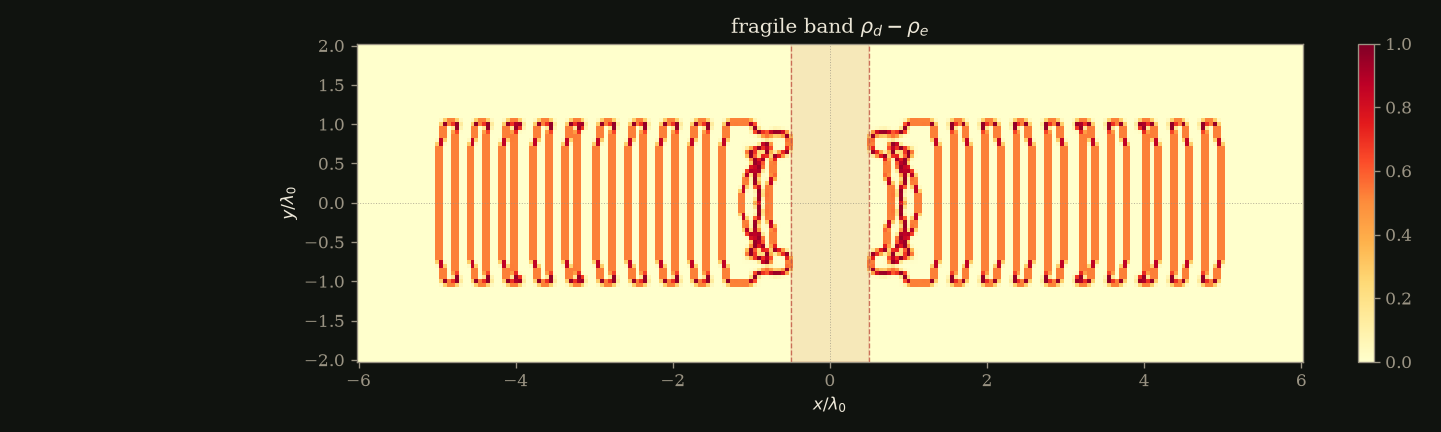

λ = 3 · erode/dilate
Verified rebuild: LDOS/vac=2.12e+03, Q_eig=4e+04, Q_FWHM=2.66e+04, P=0.565, fabricable=False. Gap |ε−1|≤0.00e+00, sym x/y 6.88e-15/5.11e-15.
