ldos-opt · Shaker et al. reproduction
A crystal slats a=0.45 finished

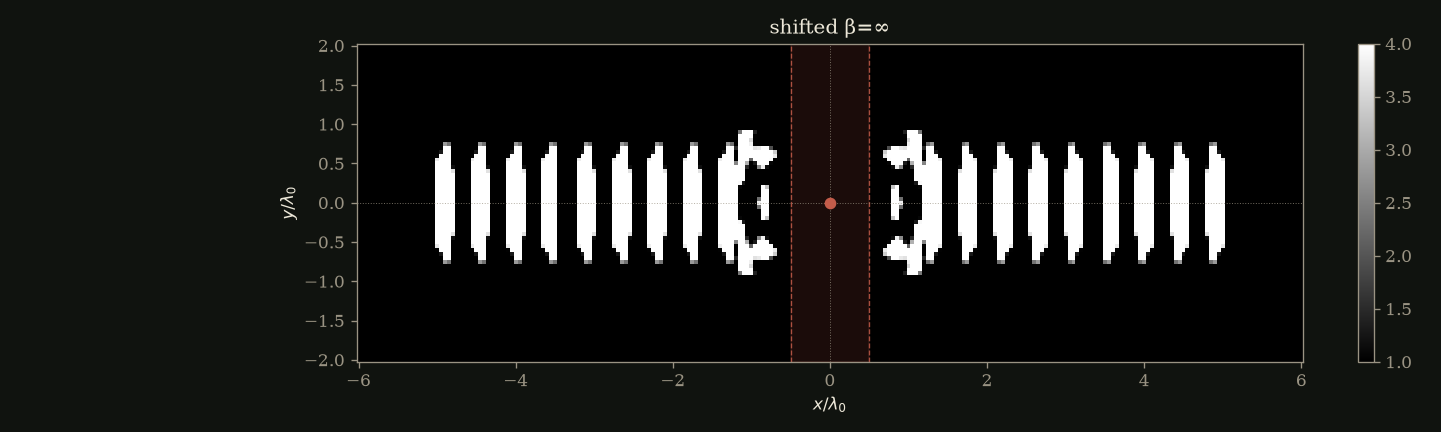

Dipole at (0,0) in a vacuum slot |x| < 0.5 λ0 (0.5 μm of free space on each side if λ0 = 1 μm). Design occupies 0.5 ≤ |x| ≤ 5 λ0 and |y| ≤ 1 λ0. Density is optimized in the first quadrant and mirrored through x = 0 and y = 0. Material ε ∈ [1, 4].
phc-A-a45 · shifted β=∞ · updated

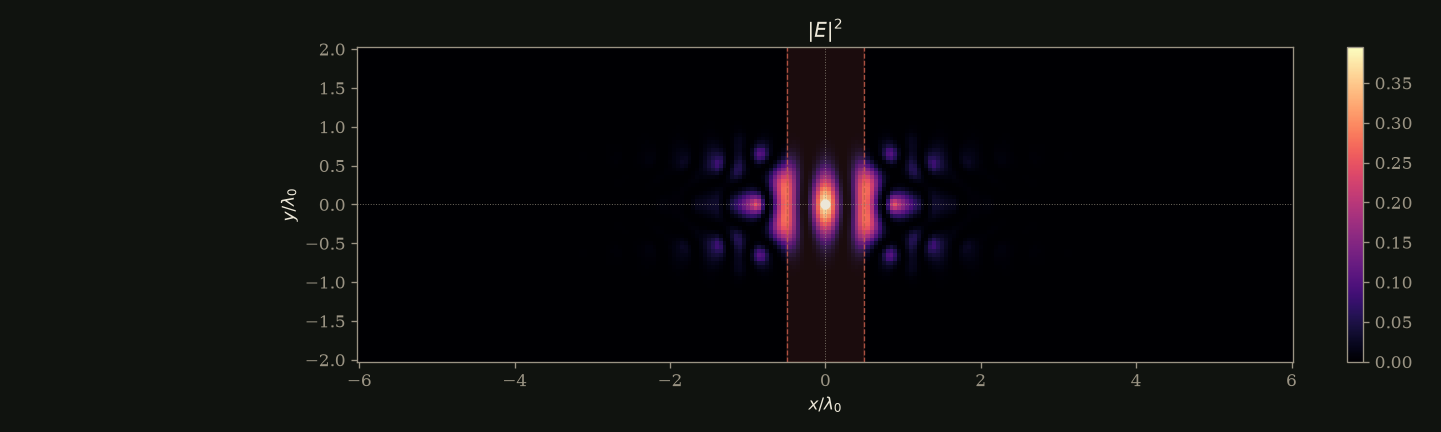

LDOS / vacuum
993
best 993 · target ≥ 500
Q
1.147e+04
best 2.306e+06 · target ≥ 50,000

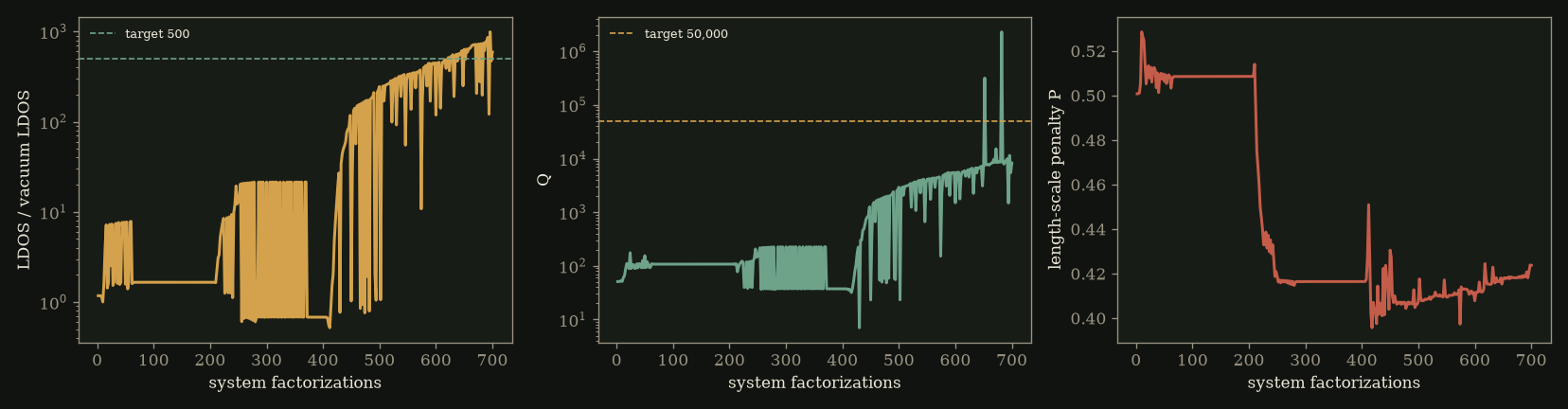

Iteration
350
700 factorizations
Re ω*/ω0
1.017
wall 351.5 s
Length-scale P
0.4209

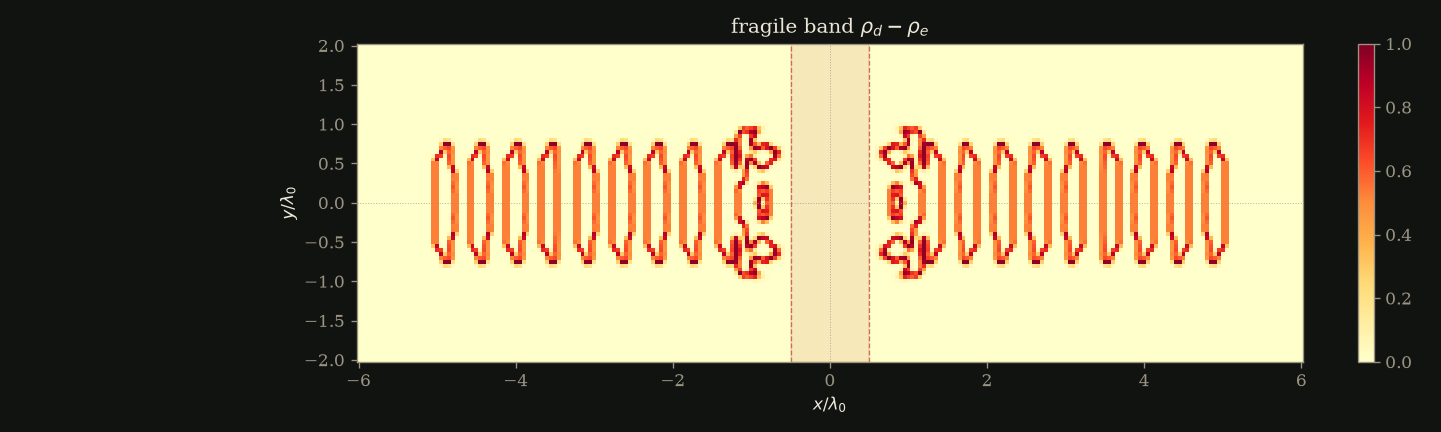

λ = 3 · erode/dilate
Verified rebuild: LDOS/vac=993, Q_eig=1.15e+04, Q_FWHM=7.65e+03, P=0.421, fabricable=False. Gap |ε−1|≤0.00e+00, sym x/y 4.04e-14/2.89e-14.
