ldos-opt · Shaker et al. reproduction
B per-penalty a=0.35 s4 success

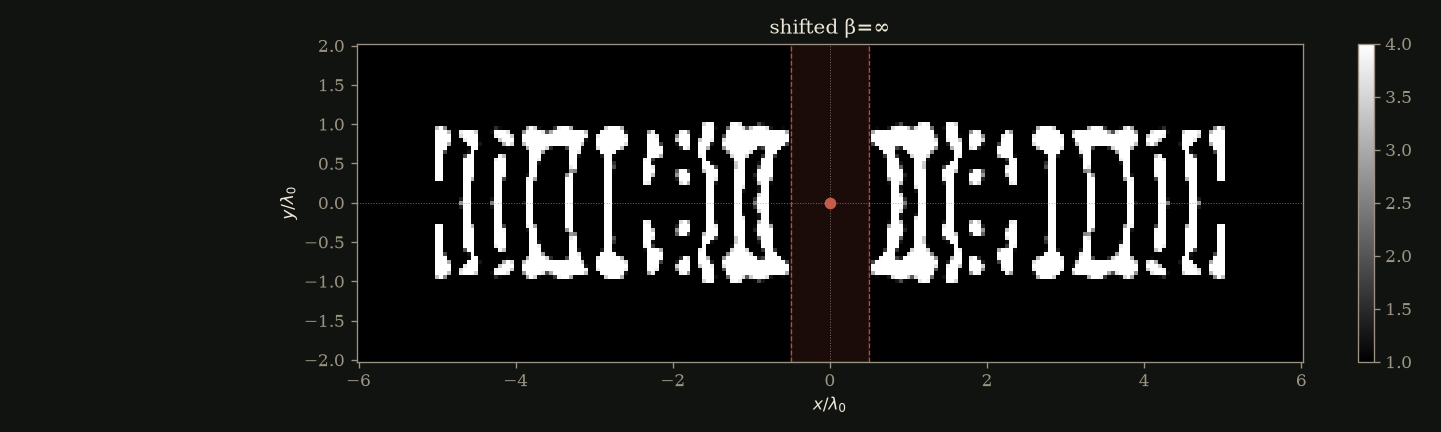

Dipole at (0,0) in a vacuum slot |x| < 0.5 λ0 (0.5 μm of free space on each side if λ0 = 1 μm). Design occupies 0.5 ≤ |x| ≤ 5 λ0 and |y| ≤ 1 λ0. Density is optimized in the first quadrant and mirrored through x = 0 and y = 0. Material ε ∈ [1, 4].
phc-B-s4-a35 · shifted β=∞ · updated

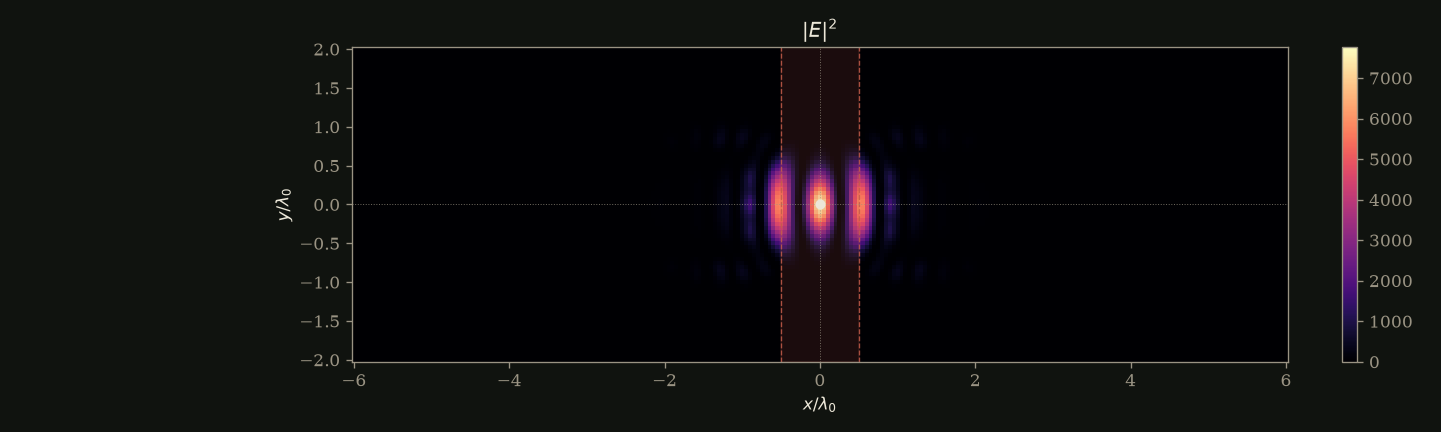

LDOS / vacuum
1.392e+05
best 1.392e+05 · target ≥ 500
Q
1.073e+06
best 1.073e+06 · target ≥ 50,000

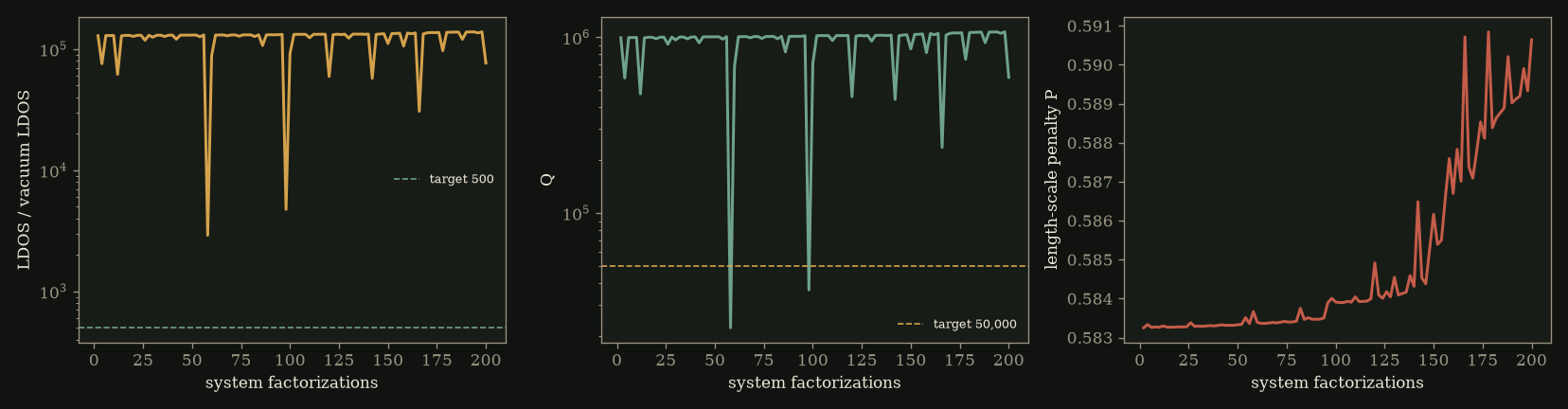

Iteration
100
200 factorizations
Re ω*/ω0
1.021
wall 98.9 s

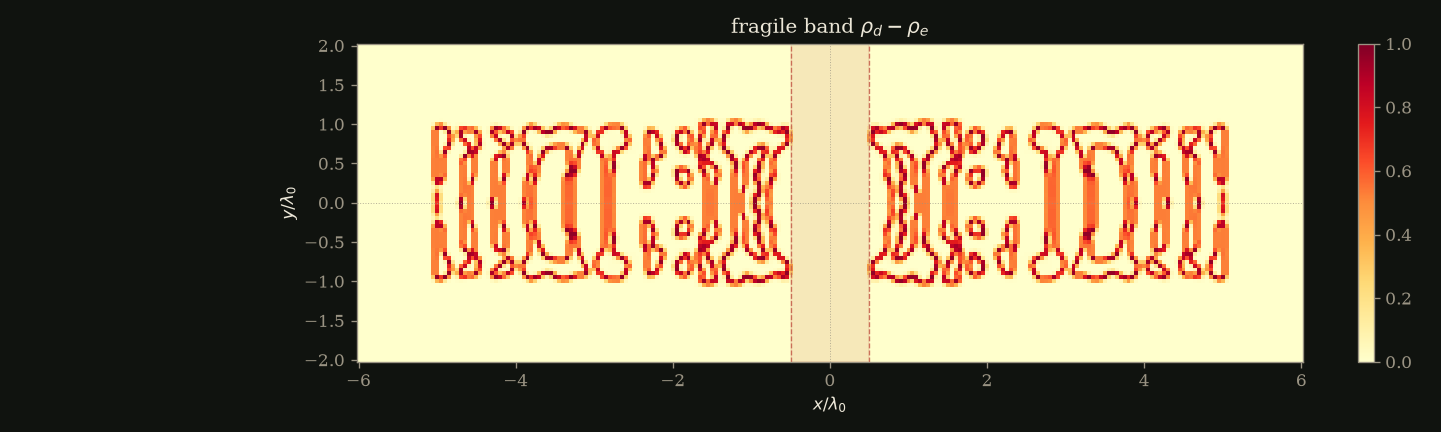

Length-scale P
0.5893
λ = 3 · erode/dilate
Verified rebuild: LDOS/vac=1.39e+05, Q_eig=1.07e+06, Q_FWHM=7.15e+05, P=0.589, fabricable=False. Gap |ε−1|≤0.00e+00, sym x/y 8.44e-15/8.44e-15.
