ldos-opt · Shaker et al. reproduction
D hole crystal a=0.45 finished

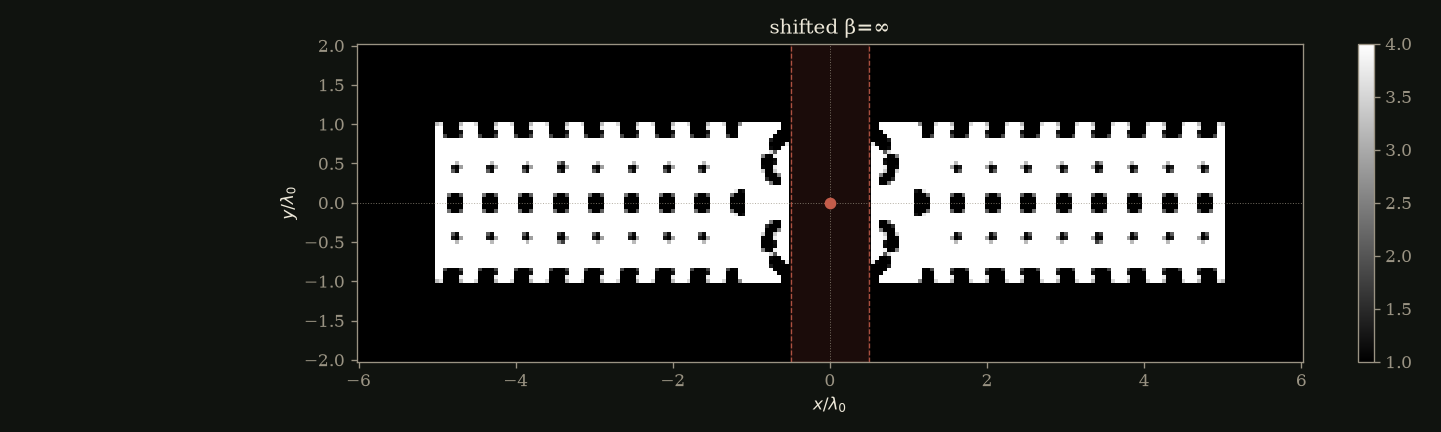

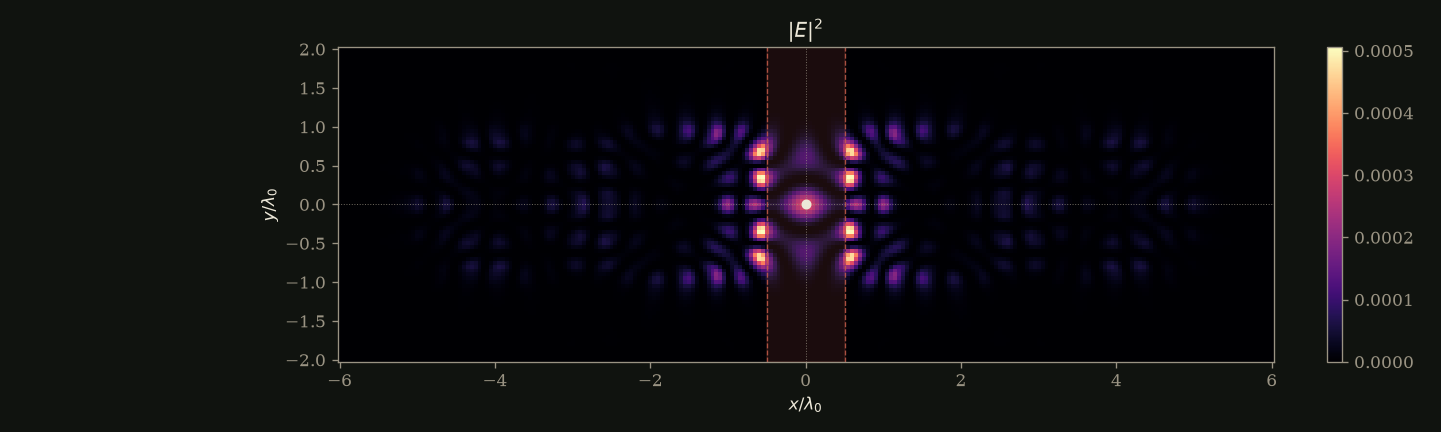

Dipole at (0,0) in a vacuum slot |x| < 0.5 λ0 (0.5 μm of free space on each side if λ0 = 1 μm). Design occupies 0.5 ≤ |x| ≤ 5 λ0 and |y| ≤ 1 λ0. Density is optimized in the first quadrant and mirrored through x = 0 and y = 0. Material ε ∈ [1, 4].
phc-D-a45 · shifted β=∞ · updated

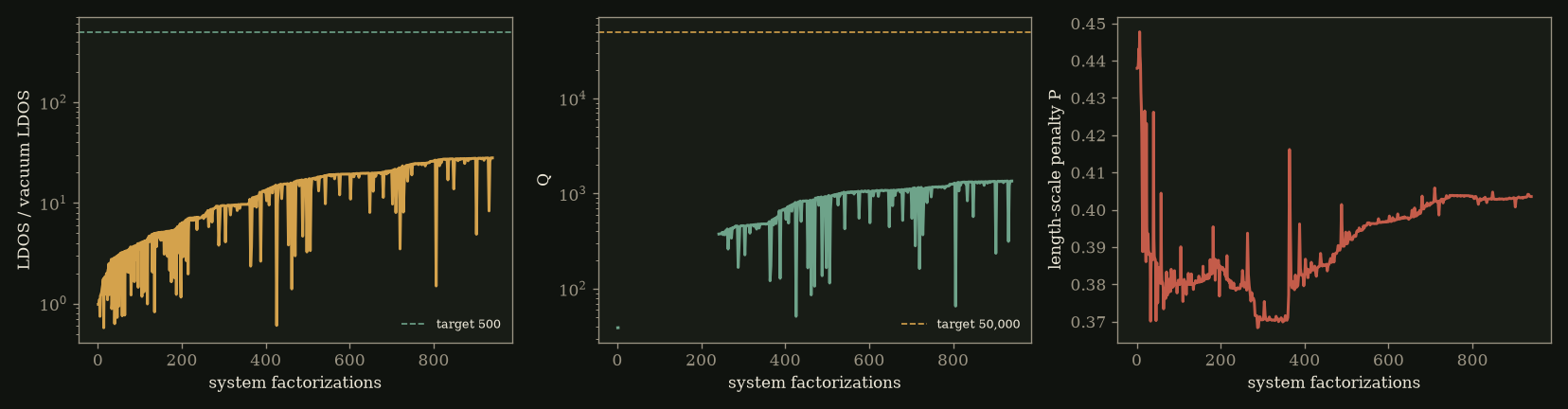

LDOS / vacuum
27.96
best 27.96 · target ≥ 500
Q
1.354e+03
best 1.355e+03 · target ≥ 50,000
Iteration
590
940 factorizations
Re ω*/ω0
1.007
wall 402.8 s
Length-scale P
0.4036

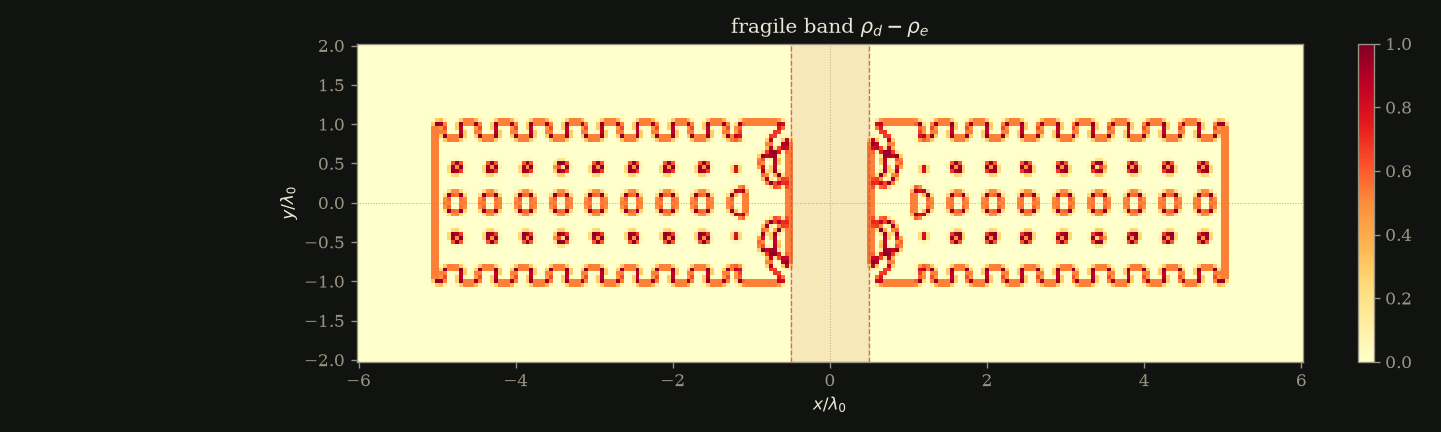

λ = 3 · erode/dilate
Verified rebuild: LDOS/vac=28, Q_eig=1.35e+03, Q_FWHM=902, P=0.404, fabricable=False. Gap |ε−1|≤0.00e+00, sym x/y 8.88e-15/7.99e-15.
