ldos-opt · Shaker et al. reproduction
E homotopy n=1.45/1.55 finished
Dipole at (0,0) in a vacuum slot |x| < 0.5 λ0 (0.5 μm of free space on each side if λ0 = 1 μm). Design occupies 0.5 ≤ |x| ≤ 5 λ0 and |y| ≤ 1 λ0. Density is optimized in the first quadrant and mirrored through x = 0 and y = 0. Material ε ∈ [2.1025, 2.4025].

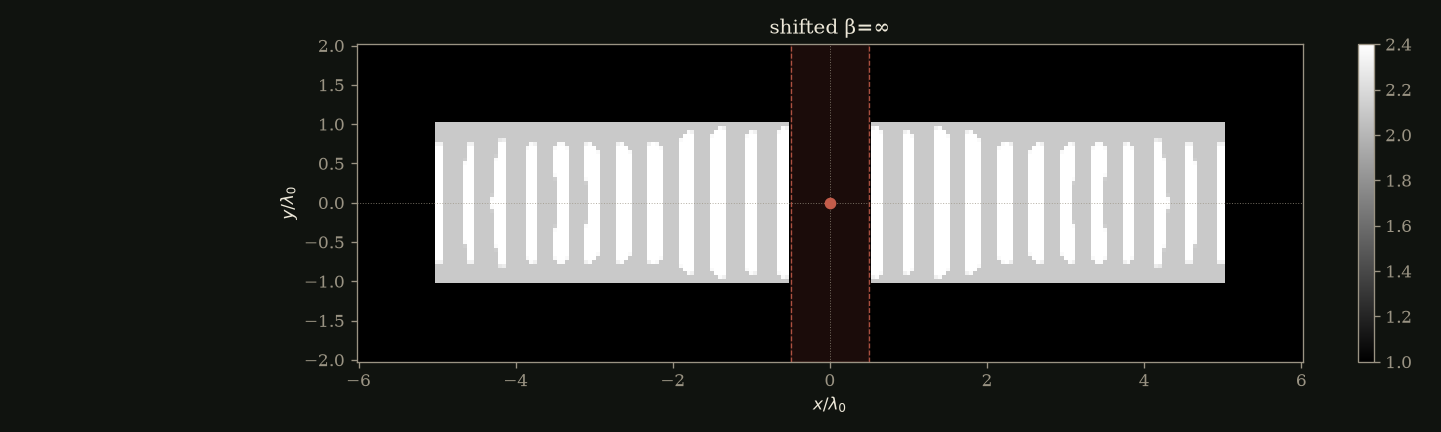

phc-E-d05 · shifted β=∞ · updated

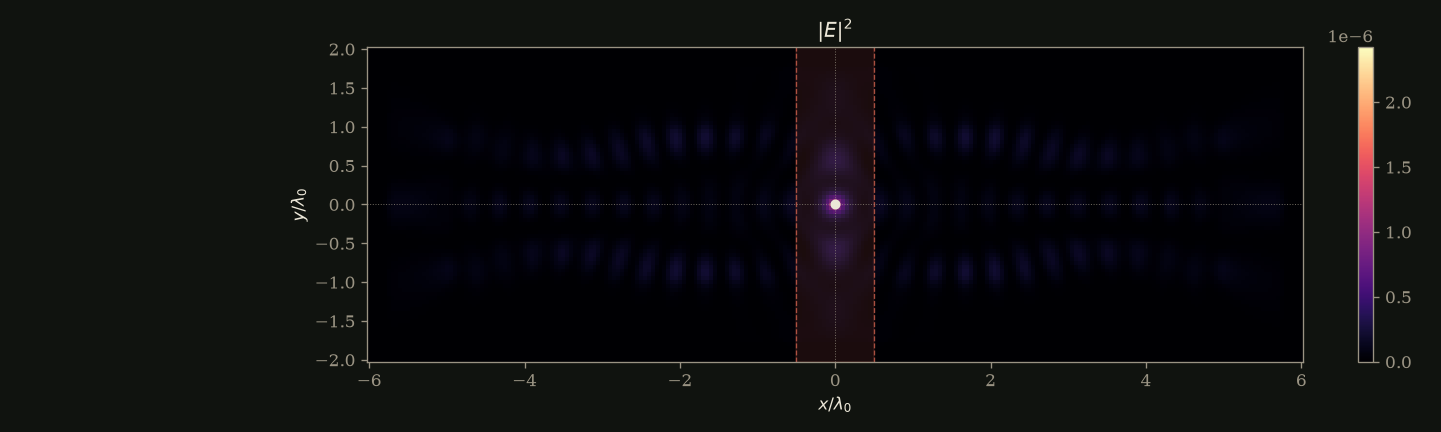

LDOS / vacuum
1.174
best 1.331 · target ≥ 500
Q
47.95
best 52.14 · target ≥ 50,000

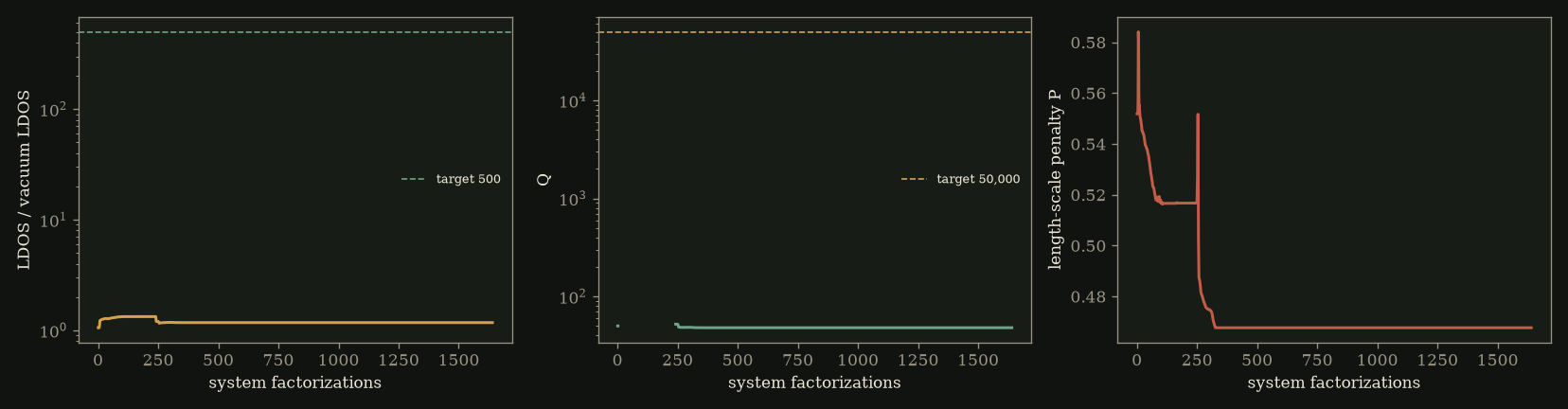

Iteration
940
1640 factorizations
Re ω*/ω0
1
wall 566.3 s

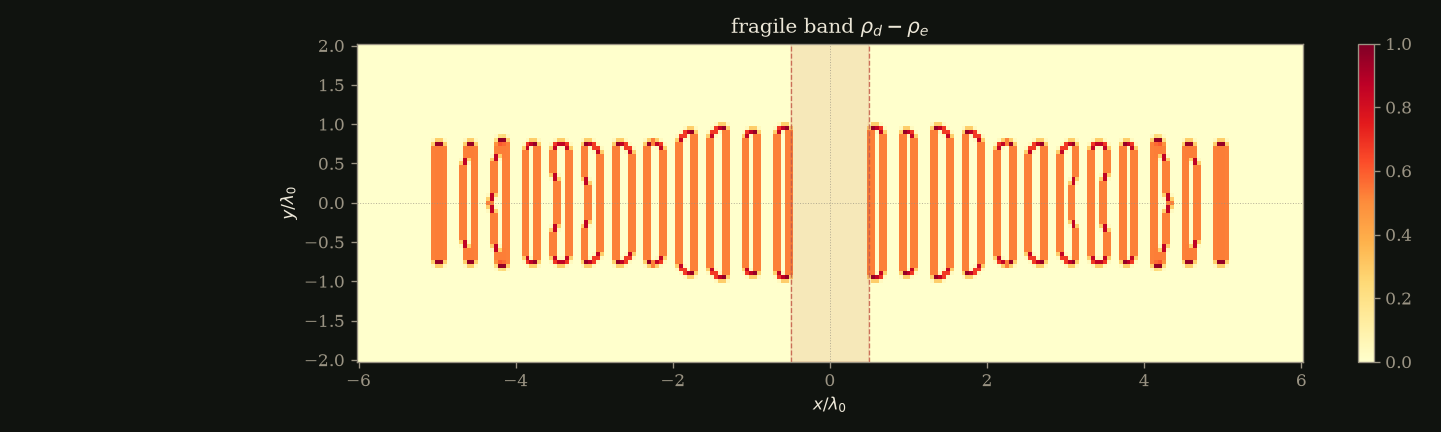

Length-scale P
0.4677
λ = 3 · erode/dilate
Verified rebuild: LDOS/vac=1.17, Q_eig=47.9, P=0.468, fabricable=False. Gap |ε−1|≤0.00e+00, sym x/y 4.44e-16/4.44e-16.
