ldos-opt · Shaker et al. reproduction
sin-enl-best-s5 Δη=0.2 λ=3.0 a=0.5 success

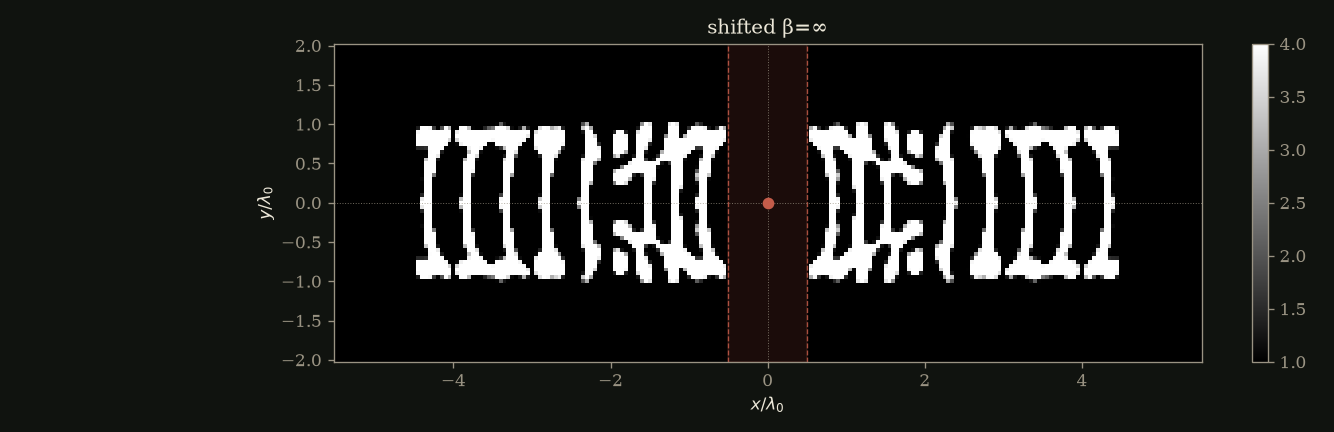

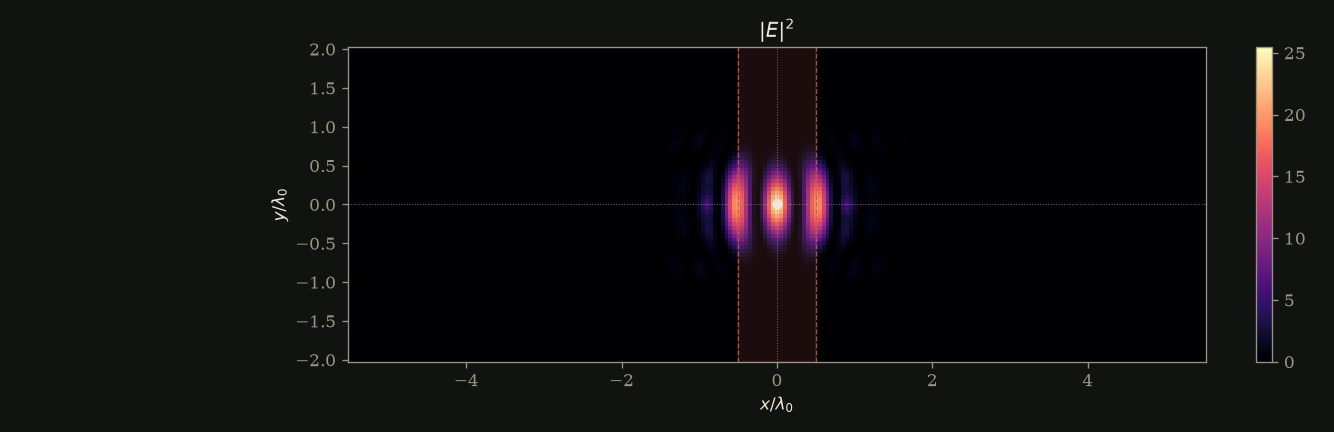

Dipole at (0,0) in a vacuum slot |x| < 0.5 λ0 (0.5 μm of free space on each side if λ0 = 1 μm). Design occupies 0.5 ≤ |x| ≤ 4.5 λ0 and |y| ≤ 1 λ0. Density is optimized in the first quadrant and mirrored through x = 0 and y = 0. Material ε ∈ [1, 4].
sin-enl-best-s5 · shifted β=∞ · updated
LDOS / vacuum
7.973e+03
best 7.973e+03 · target ≥ 500
Q
6.048e+04
best 6.048e+04 · target ≥ 50,000

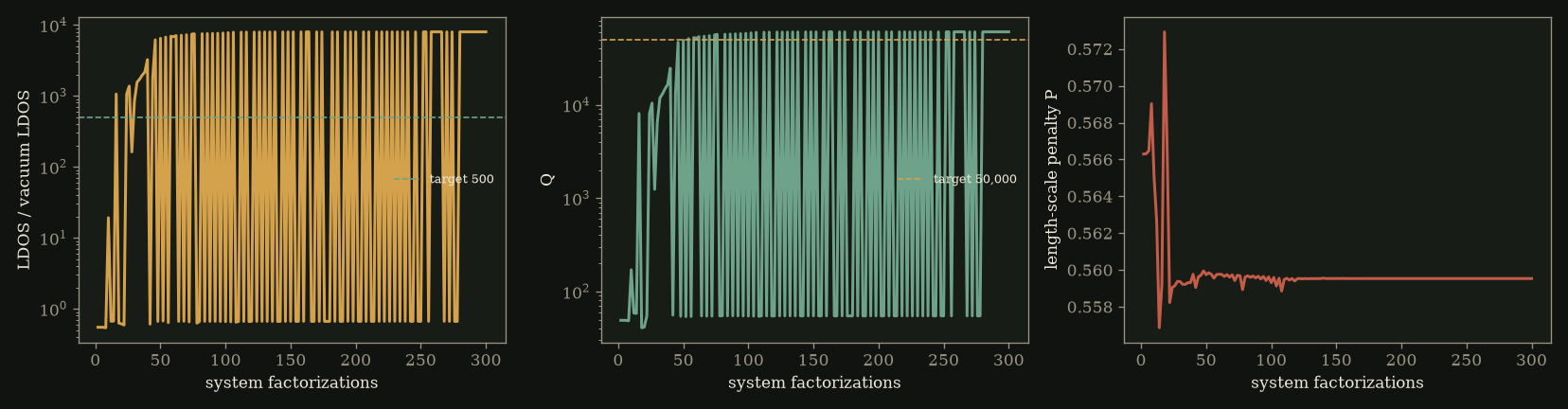

Iteration
150
300 factorizations
Re ω*/ω0
1.033
wall 141 s
Length-scale P
0.5595

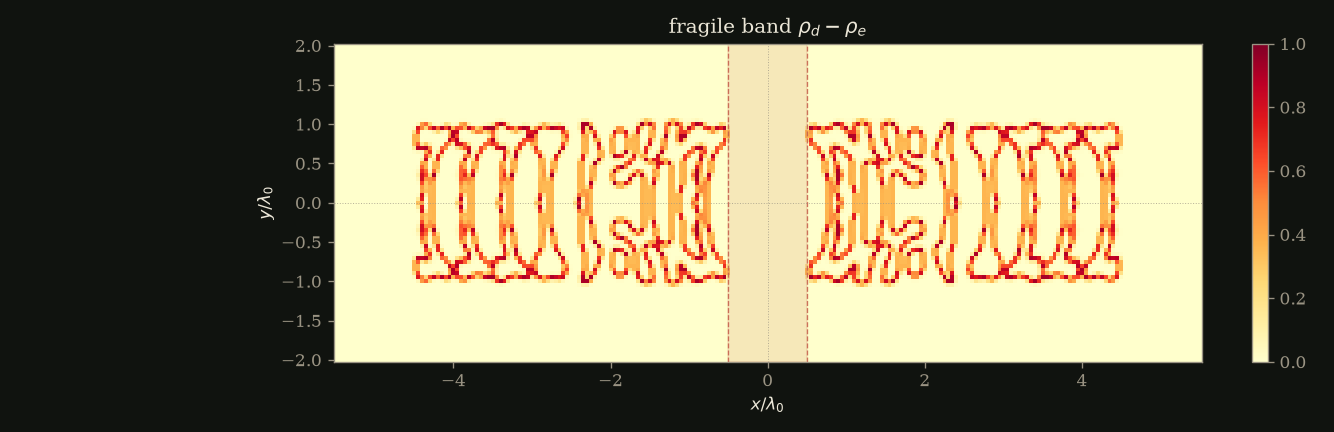

λ = 3 · erode/dilate
Verified rebuild: LDOS/vac=7.97e+03, Q_eig=6.05e+04, Q_FWHM=4.03e+04, P=0.56, fabricable=False. Gap |ε−1|≤0.00e+00, sym x/y 4.44e-15/5.77e-15.
