ldos-opt · Shaker et al. reproduction
Slow enlarge sin-slow-s3 |x|≤4.75 success

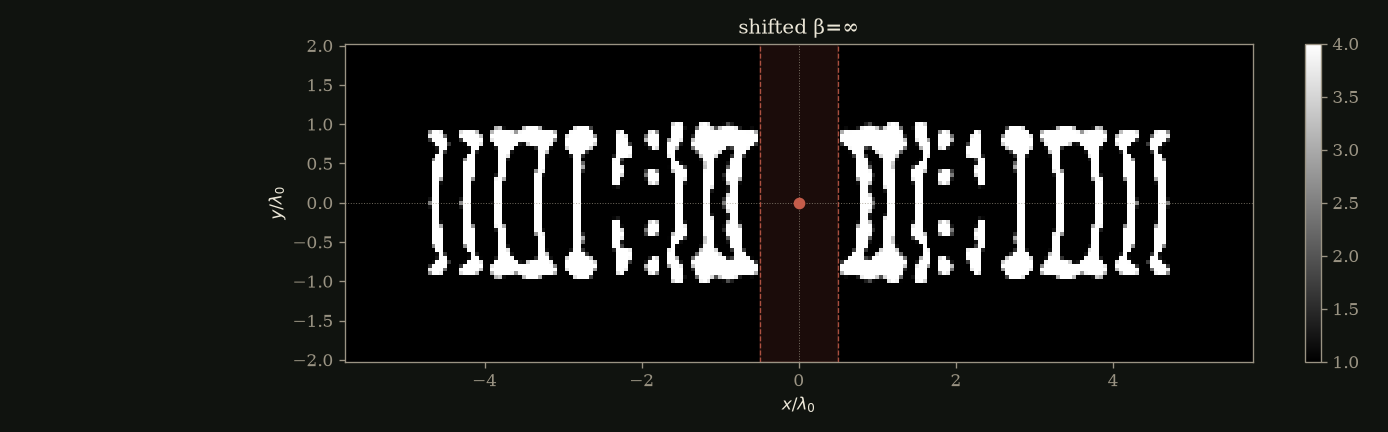

Dipole at (0,0) in a vacuum slot |x| < 0.5 λ0 (0.5 μm of free space on each side if λ0 = 1 μm). Design occupies 0.5 ≤ |x| ≤ 4.75 λ0 and |y| ≤ 1 λ0. Density is optimized in the first quadrant and mirrored through x = 0 and y = 0. Material ε ∈ [1, 4].
sin-slow-s3 · shifted β=∞ · updated

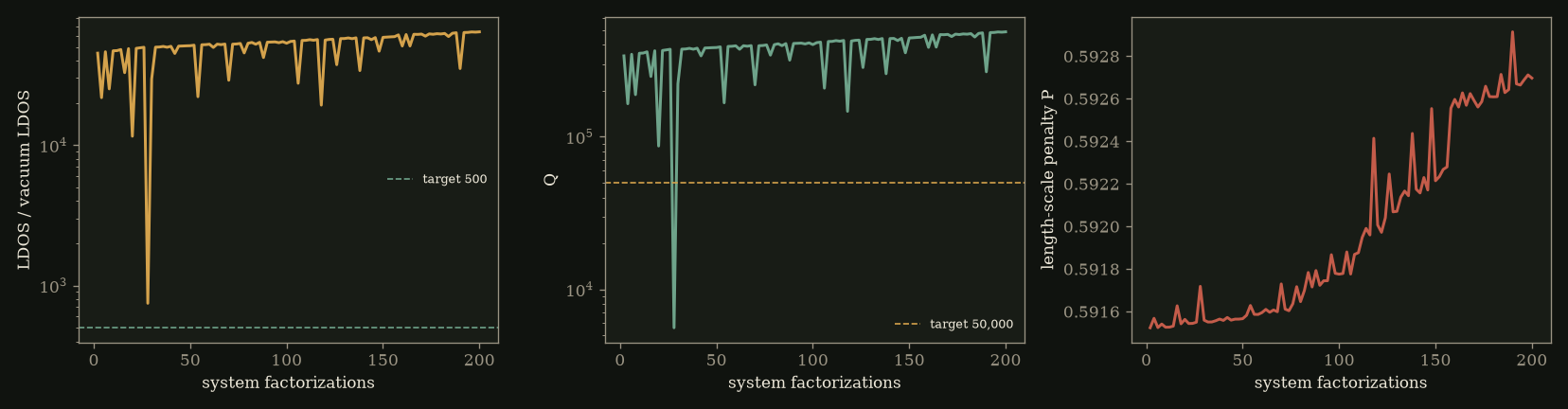

LDOS / vacuum
6.401e+04
best 6.401e+04 · target ≥ 500
Q
4.872e+05
best 4.872e+05 · target ≥ 50,000
Iteration
100
200 factorizations
Re ω*/ω0
1.021
wall 97.31 s
Length-scale P
0.5927

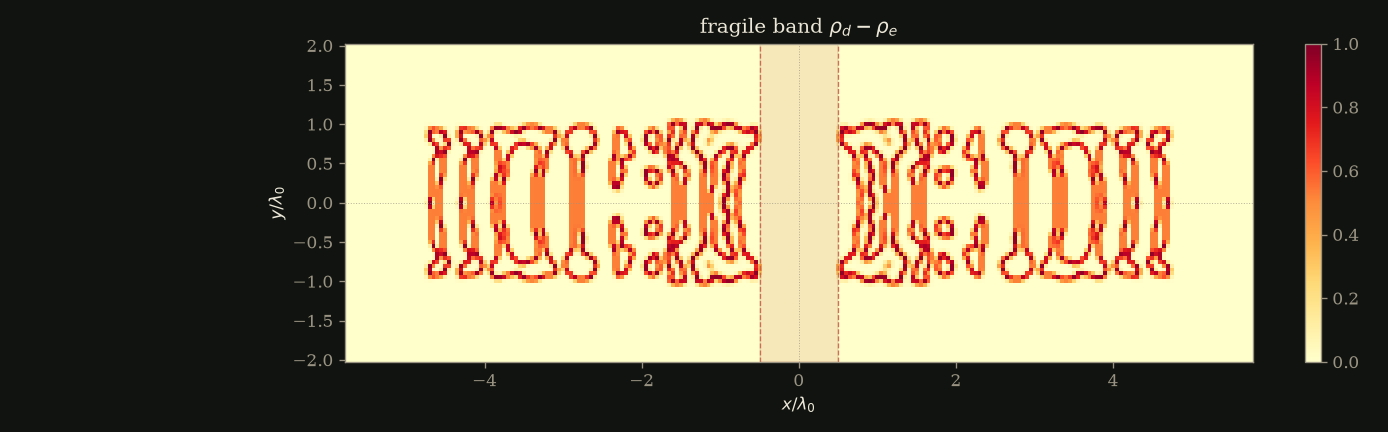

λ = 3 · erode/dilate

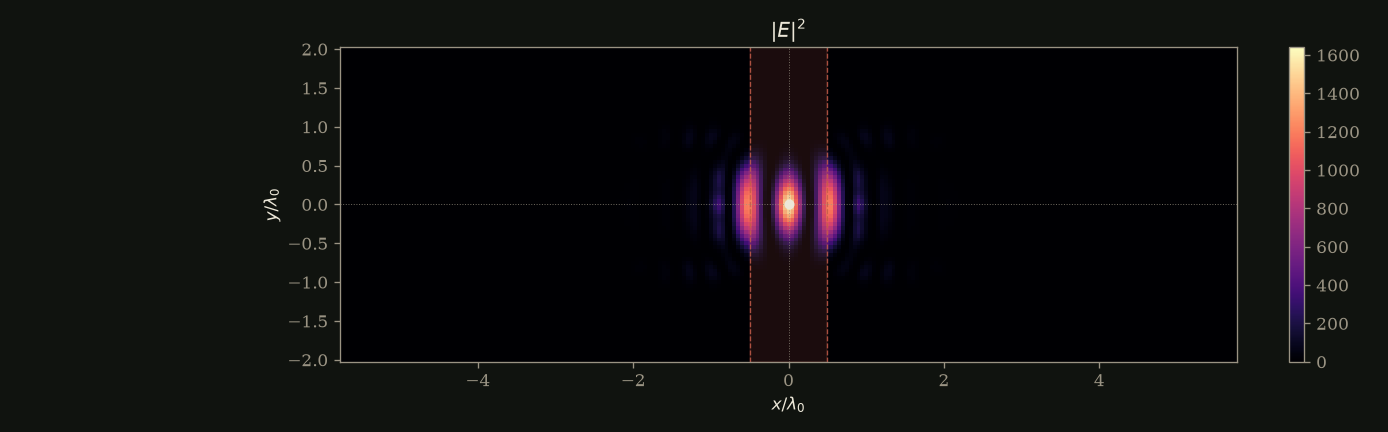

Verified rebuild: LDOS/vac=6.4e+04, Q_eig=4.87e+05, Q_FWHM=3.25e+05, P=0.593, fabricable=False. Gap |ε−1|≤0.00e+00, sym x/y 6.66e-15/5.33e-15.
