2026-08-15 · Controlled-grid full-vector

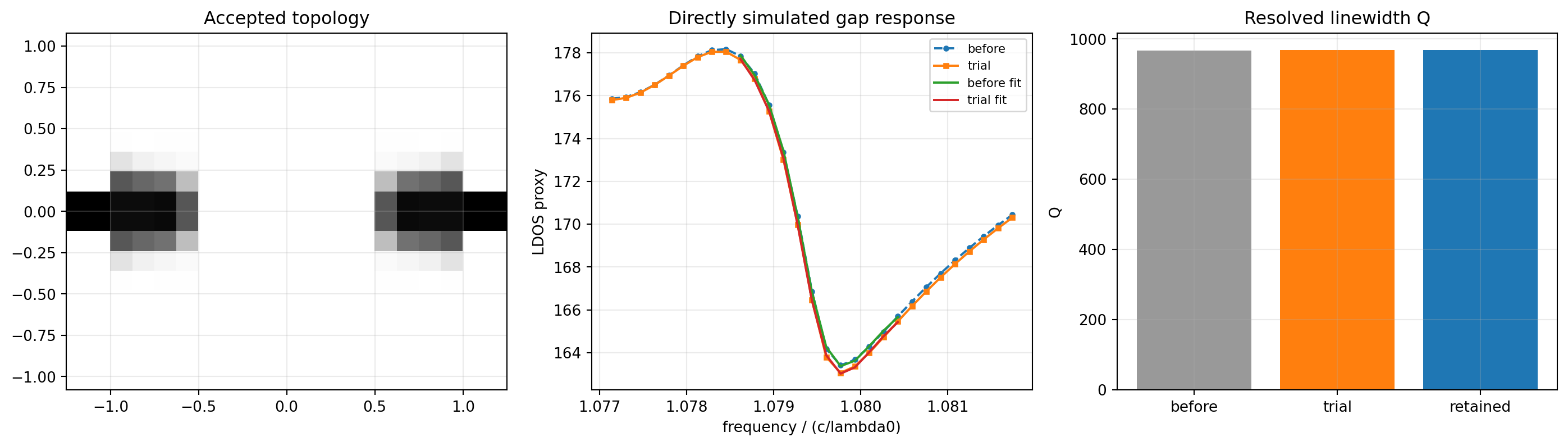

Full-vector linewidth step 001
accepted artifacts updated 2026-08-15 13:43 UTC
A differentiable topology step improved the directly resolved Fano linewidth Q and passed all 15 physical and spectral gates, including fresh interleaved-frequency validation.
Linewidth Q
967.292 → 968.652
Q gain
1.001406×
Withheld Q
939.890 → 940.839
Field overlap
0.9999889
Gates passed
15/15
Runtime
9m 16s
Decision. The controlled-grid optimizer works. The small gain still needs transverse and longitudinal grid refinement before it can support a physical cavity-Q claim.
Gate record
| Gate | Result |
|---|---|
| branch center continuity | PASS |
| complex field overlap | PASS |
| fit normalized rms | PASS |
| fit r squared | PASS |
| gap energy | PASS |
| inner energy | PASS |
| ldos retention | PASS |
| linewidth q improvement | PASS |
| linewidth resolution | PASS |
| pml energy | PASS |
| protected air | PASS |
| reflection symmetry | PASS |
| withheld fit normalized rms | PASS |
| withheld fit r squared | PASS |
| withheld linewidth q improvement | PASS |
Reproducibility artifacts
Reports, raw metrics, configurations, checkpoints, and validation data retained for this attempt.
