Live optimization dashboard

Auto-refreshes every 60 seconds. A separate read-only monitor republishes partial sample counts while a long scientific gate is running.

blocked

expanded-domain campaign stopped

A scientific or execution gate stopped the campaign: Command '['/usr/bin/time', '-v', '-o', 'outputs_atom_cooperativity_xlong_persistent/campaign/step_0007/qualification/pml/timing.txt', '/home/hoodlab/github/nanocavity_optimizer_handoff_2026-08-14/.venv/bin/python', '/home/hoodlab/github/nanocavity_optimizer_handoff_2026-08-14/multipole_pml_convergence.py', '--warmstart', '/home/hoodlab/github/nanocavity_optimizer_handoff_2026-08-14/outputs_atom_cooperativity_xlong_persistent/campaign/step_0007/run_data.npz', '--baseline-data', '/home/hoodlab/github/nanocavity_optimizer_handoff_2026-08-14/outputs_atom_cooperativity_xlong_persistent/campaign/step_0007/qualification/wide/multiprobe_data.npz', '--local-data', '/home/hoodlab/github/nanocavity_optimizer_handoff_2026-08-14/outputs_atom_cooperativity_xlong_persistent/campaign/step_0007/qualification/local/multiprobe_data.npz', '--confirmatory-data', '/home/hoodlab/github/nanocavity_optimizer_handoff_2026-08-14/outputs_atom_cooperativity_xlong_persistent/campaign/step_0007/qualification/confirmatory/multiprobe_data.npz', '--reference-real', '1.0056795816421833', '--reference-imag', '-0.0028406569906748204', '--target-window-halfwidths', '2.0', '--validator', 'combined', '--workers', '2', '--output-dir', 'outputs_atom_cooperativity_xlong_persistent/campaign/step_0007/qualification/pml']' returned non-zero exit status 1.

snapshot 2026-09-05 14:21 UTC · latest solver artifact 2026-08-18 18:29:29 UTC

subprocess.CalledProcessError: Command '['/usr/bin/time', '-v', '-o', 'outputs_atom_cooperativity_xlong_persistent/campaign/step_0007/qualification/pml/timing.txt', '/home/hoodlab/github/nanocavity_optimizer_handoff_2026-08-14/.venv/bin/python', '/home/hoodlab/github/nanocavity_optimizer_handoff_2026-08-14/multipole_pml_convergence.py', '--warmstart', '/home/hoodlab/github/nanocavity_optimizer_handoff_2026-08-14/outputs_atom_cooperativity_xlong_persistent/campaign/step_0007/run_data.npz', '--baseline-data', '/home/hoodlab/github/nanocavity_optimizer_handoff_2026-08-14/outputs_atom_cooperativity_xlong_persistent/campaign/step_0007/qualification/wide/multiprobe_data.npz', '--local-data', '/home/hoodlab/github/nanocavity_optimizer_handoff_2026-08-14/outputs_atom_cooperativity_xlong_persistent/campaign/step_0007/qualification/local/multiprobe_data.npz', '--confirmatory-data', '/home/hoodlab/github/nanocavity_optimizer_handoff_2026-08-14/outputs_atom_cooperativity_xlong_persistent/campaign/step_0007/qualification/confirmatory/multiprobe_data.npz', '--reference-real', '1.0056795816421833', '--reference-imag', '-0.0028406569906748204', '--target-window-halfwidths', '2.0', '--validator', 'combined', '--workers', '2', '--output-dir', 'outputs_atom_cooperativity_xlong_persistent/campaign/step_0007/qualification/pml']' returned non-zero exit status 1.

Active solve domain

64×26×22

two whole mirror periods added per side; slab unchanged

Controlled grid

Q 921.6505

spectrally accepted only

Fine input pole

Q 172.1617

PML converged on this grid; not physical Q

Latest accepted step

F 0.580263

Q-fit 176.4488; controlled grid

Unattended runner

persistent

expanded checkpoint PML passed; no preset step count

Live campaign progress

Current stage

pml

persistent fail-closed campaign

PML cases complete

4/6

71.0% of all case samples solved

Solver artifact activity

1540303 s ago

derived from restart files, not the page refresh

Qualified optimization steps

8 current-domain performance point(s), including baseline

PML perturbation	State	Samples
strength_0.8x	complete	198/198
strength_1.2x	complete	198/198
y_onset_in	complete	198/198
y_onset_out	complete	198/198
z_onset_in	running	27/198
z_onset_out	running	24/198

Current gates

Gate	Status	Meaning
Exact y/z reduction	pass	Small-grid field/LDOS/gradient match the unreduced reflection-closed problem; fine boundary identities pass.
Fine spectral	pass	Sheet-local order ensemble and untouched confirmatory response gate pass.
Fine input combined PML	pass	All six absorber perturbations pass fresh spectral gates; maximum complex pole shift is 0.005713 halfwidths.
Shifted-MMA cooperativity step	pass	Fixed-atom F, shifted F, and Q improve; fresh sheet-local spectral and confirmatory gates pass.
Latest-topology PML	pass	All seven checkpoint-bound cases pass; Q-fit span 0.7542%, maximum complex-pole shift 0.005698 halfwidths.
Two-period x-domain transfer	pass	64×26×22; mirror phase preserved; slab/transverse PML unchanged; no pole or Q carried.
Expanded-domain spectral reacquisition	pass	Fresh 41/449/28-point wide, dense-local, and confirmatory seven-probe protocol.
Expanded-domain PML	pass	Required before the persistent optimizer may take its first topology step.
Grid/domain convergence	not run	Required before any physical Q or device claim.

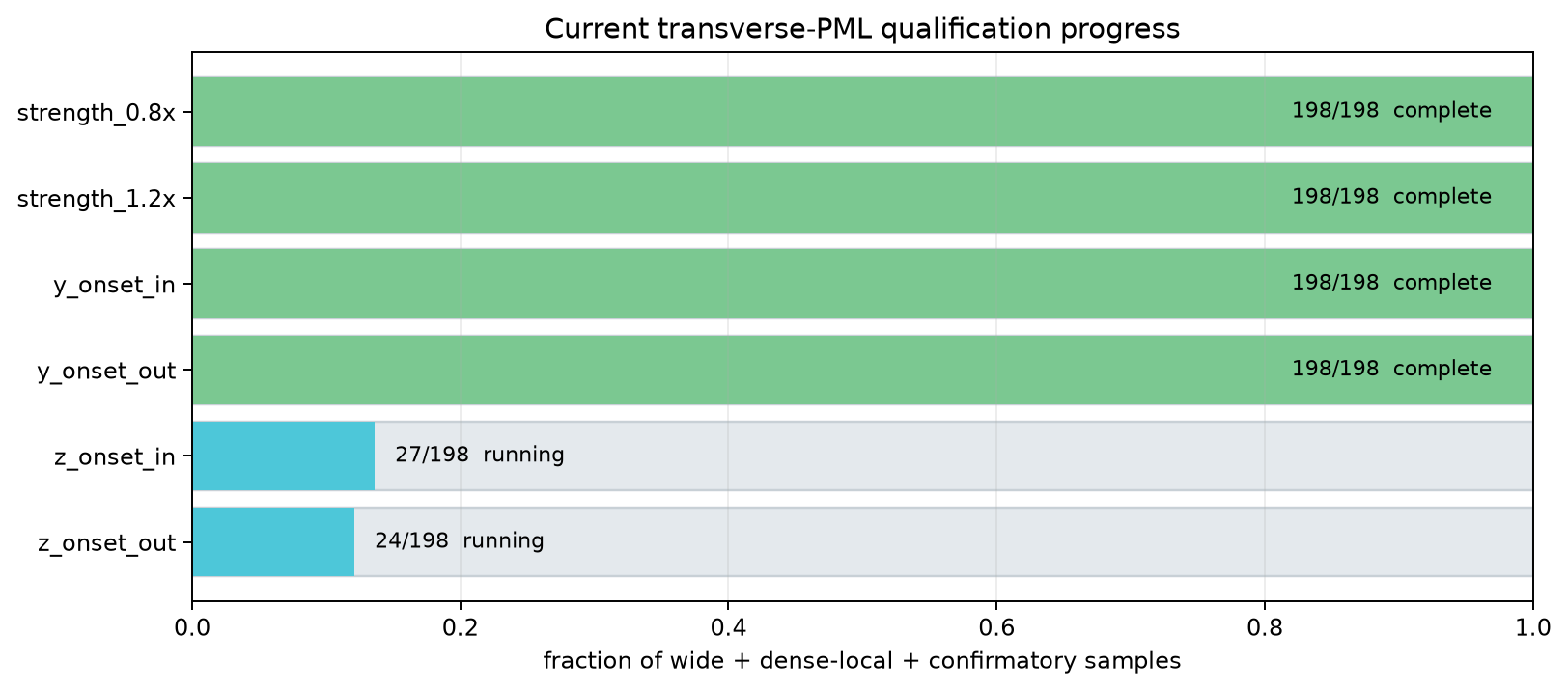

live PML sample progress — Live sample counts from restartable PML partial files. This read-only monitor is not used by the acceptance gate.

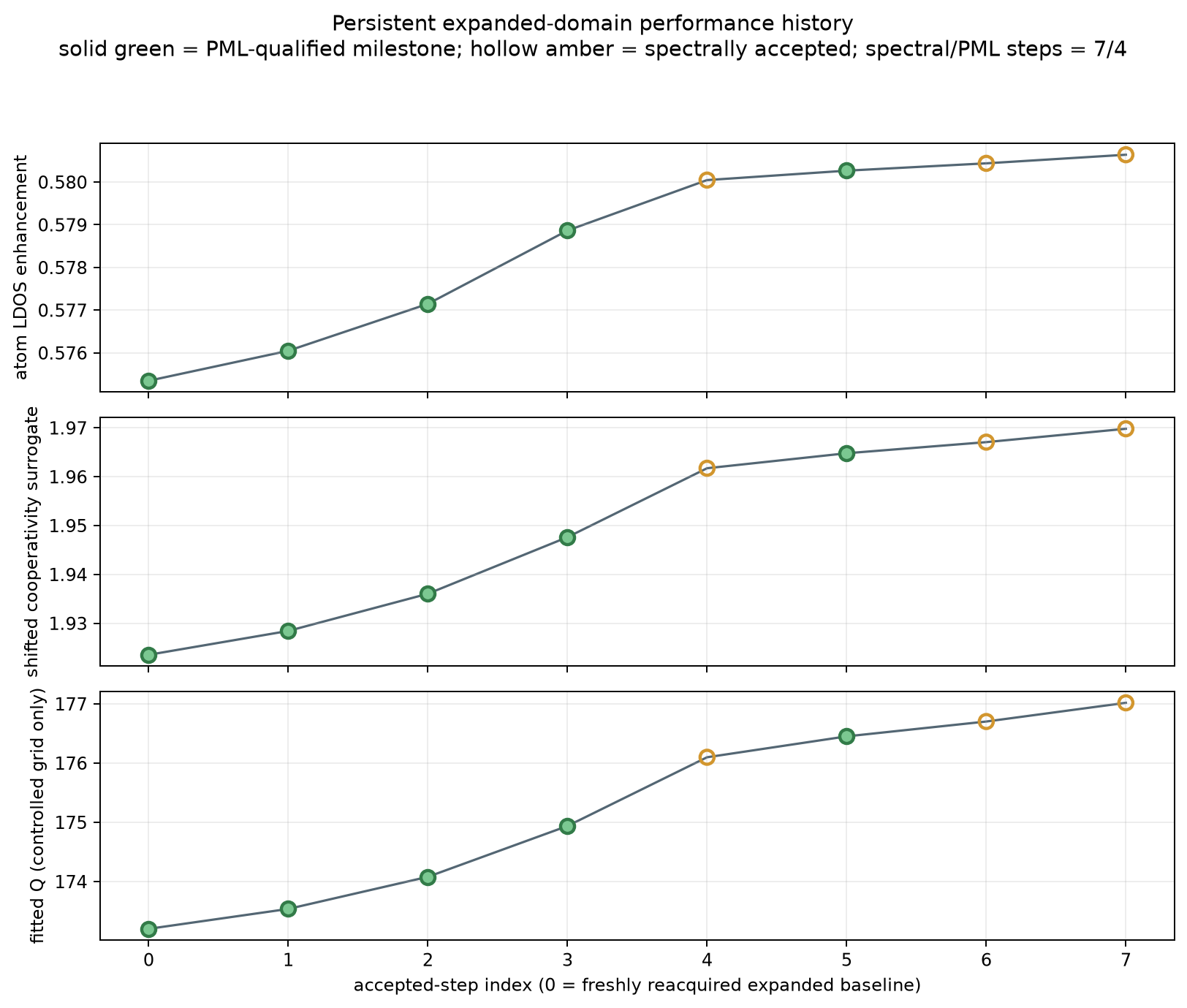

optimization performance history — Persistent expanded-domain atom-LDOS, shifted-cooperativity, and fitted-Q history. Hollow points have not passed every required gate.

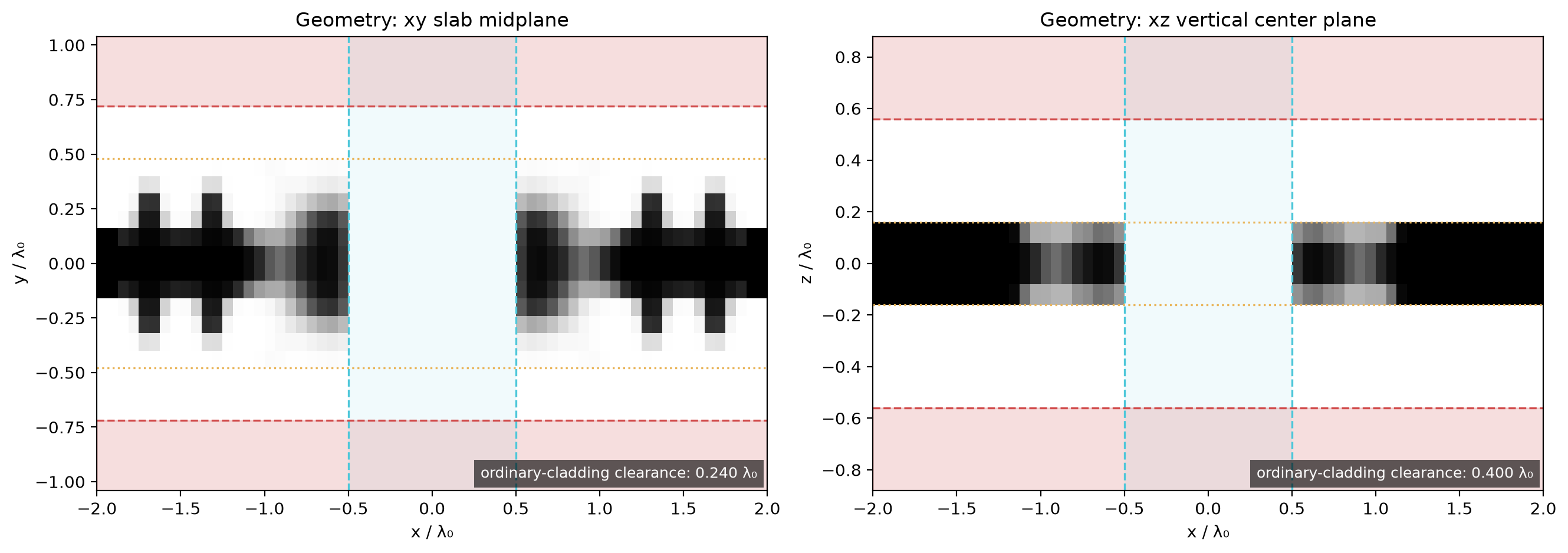

device xy and xz geometry — Exact checkpoint geometry in xy and xz. Cyan marks the protected air strip; red marks transverse PML; gold dotted lines mark the outermost possible dielectric.

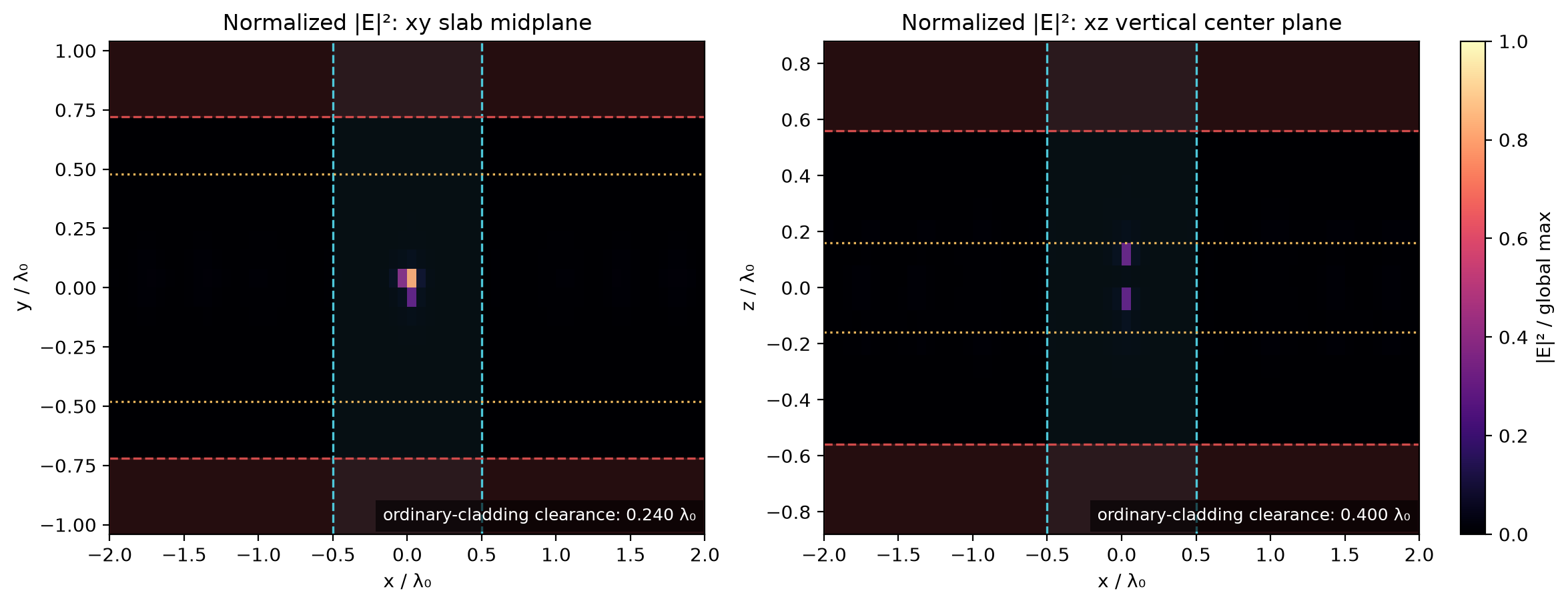

device xy and xz field — Exact-checkpoint normalized field intensity in xy and xz at the recorded frequency.

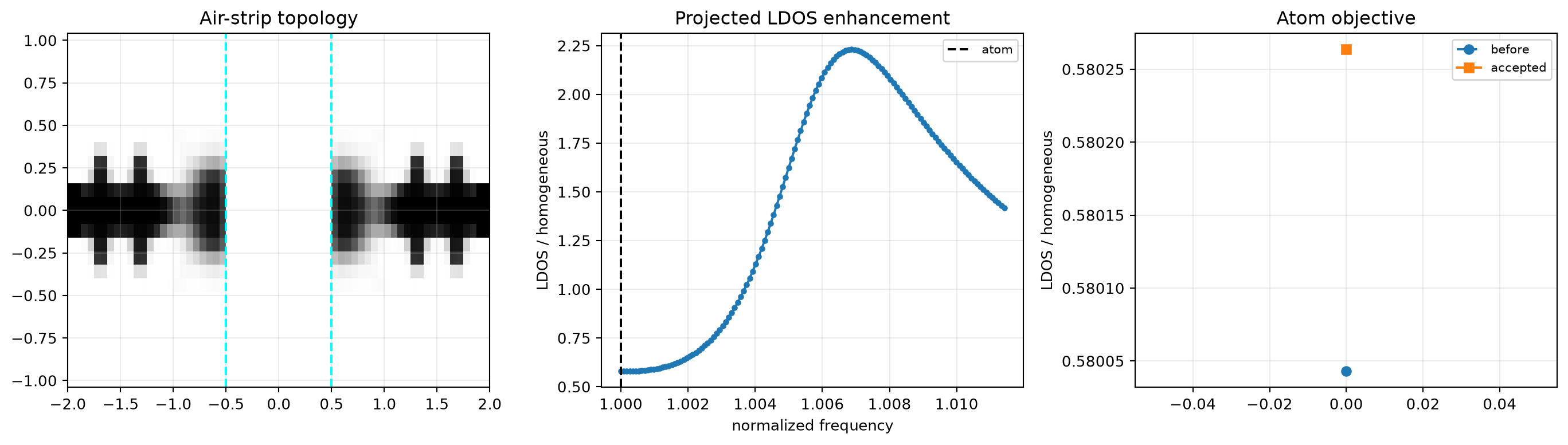

latest atom LDOS run — Latest atom-LDOS qualification or step.

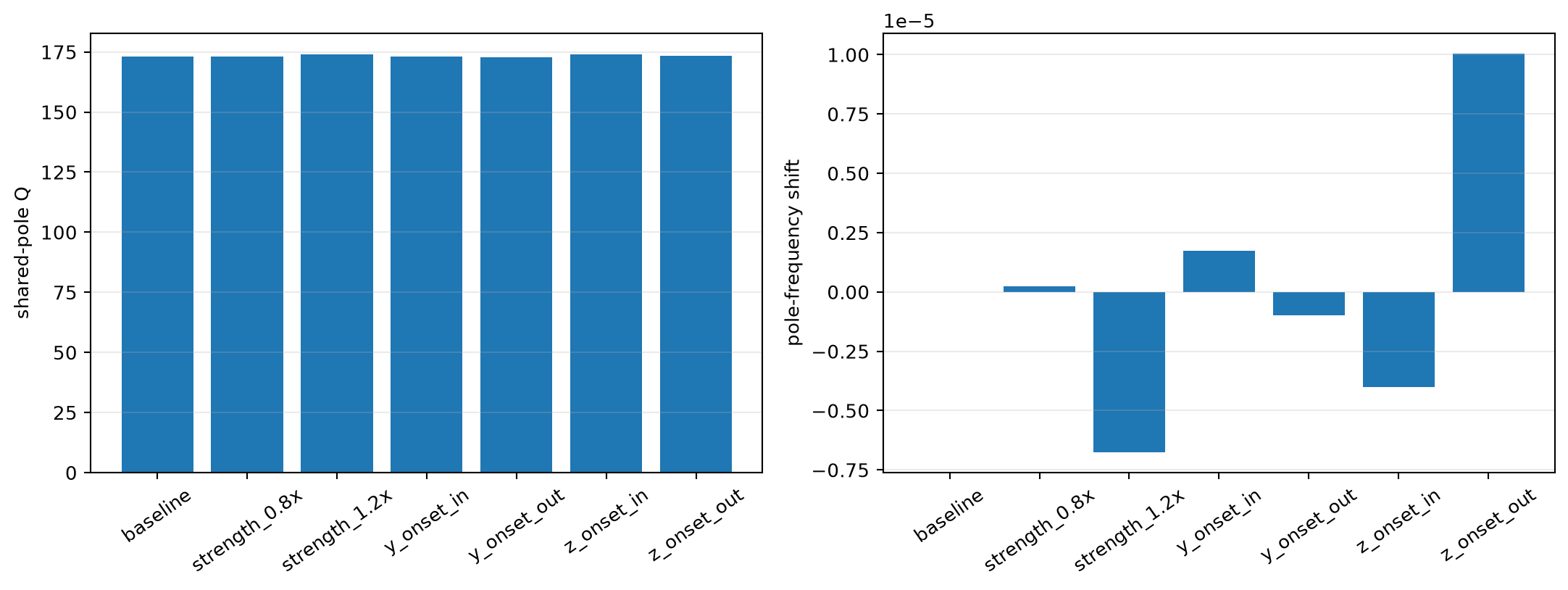

fine-grid PML convergence — Seven-case baseline plus transverse-PML convergence gate.

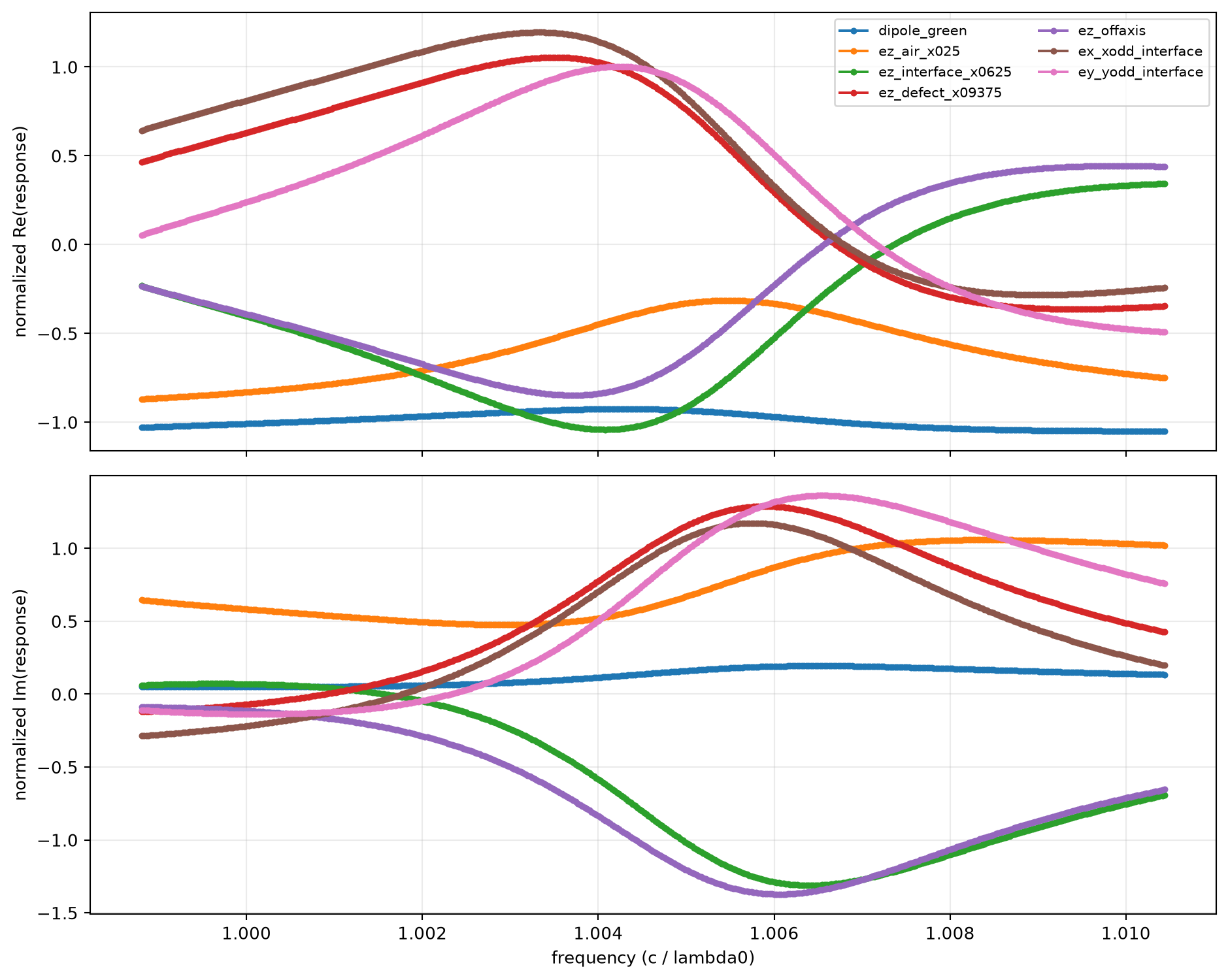

fine-grid response — Current fine-grid seven-probe local spectrum.
