Dev27 Fabry–Pérot cavities

Early nanobeam Fabry-Perot cavity layout iterations (gds-1..8, beamer exports).

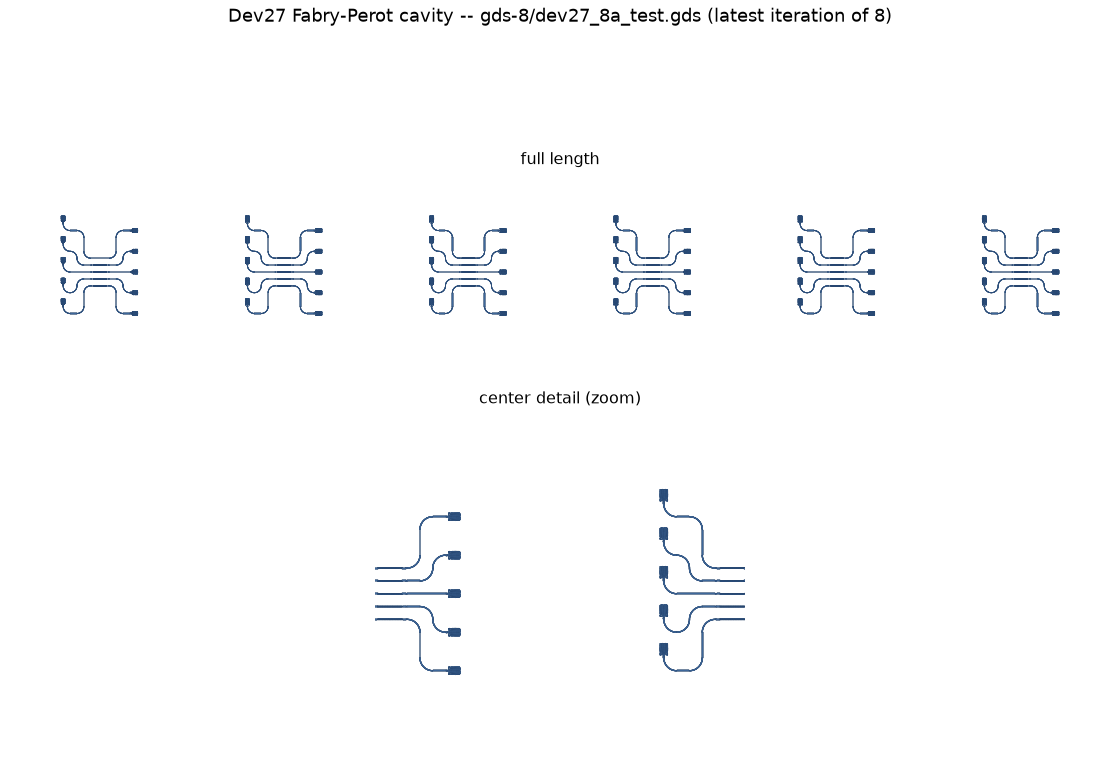

No README in this project yet -- this folder is a raw GDS iteration history (gds/ through gds-8/, plus Beamer mask-writer exports in beamer*/). The geometry below is rendered directly from the latest GDS.

Results

No FDTD/simulation outputs exist in this tree -- it is a pure layout-iteration project.

Downloads

• dev27_8a_test.gds (latest, variant a)
• dev27_8b_test.gds (latest, variant b)

252 GDS files total across gds/ through gds-8/ (one iteration history) plus beamer*/ mask exports; only the latest iteration is linked here.

---

Source: device_architectures/v0/dev27_fabry_perot_cavities/
