Probe v5¶

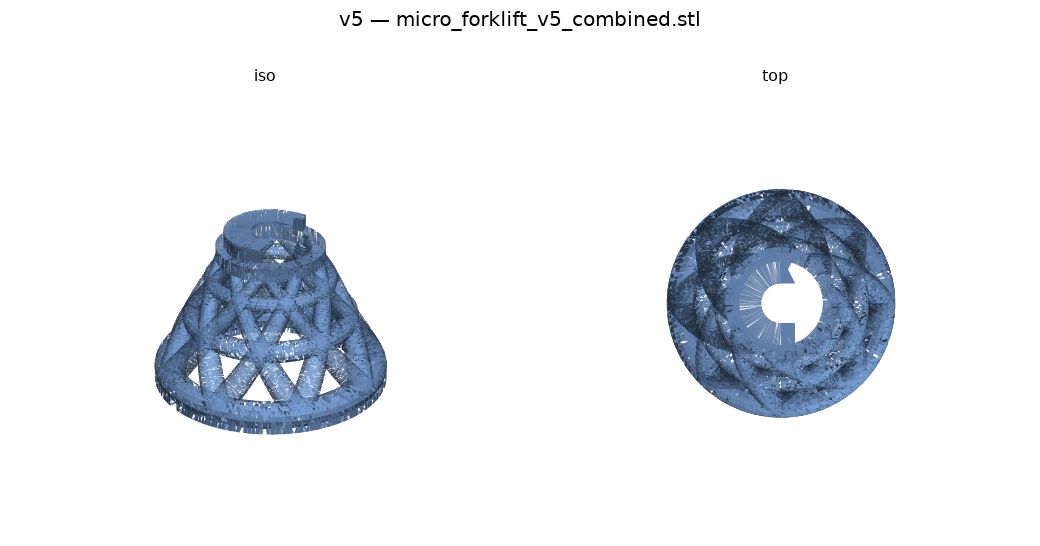

schematic
Dimensions¶

v5 micro forklift and crystal puck dimensions, in microns

puck_array
puck_small_diameters = 10, 20, 30, 40, 50
puck_top_diameter = 90
puck_stem_height = 20
puck_top_height = 10
puck_total_height = 30
puck_grid_side = 3
puck_count_per_diameter = 9
puck_total_count = 45
puck_grid_pitch = 200
puck_group_pitch = 800
puck_25_grid_side = 5
puck_25_small_diameter = 25
puck_25_total_count = 25
puck_25_grid_pitch = 200

micro_forklift
total_height = 300
base_depth = 25
base_inner_diameter = 330.175
base_outer_diameter = 430.175
base_inner_radius = 165.087685
base_outer_radius = 215.087685
base_contact_area = 59717.8074
scaffold_angle_degrees_from_normal = 25
scaffold_base_inner_diameter = 330.175
scaffold_base_outer_diameter = 430.175
scaffold_centerline_radial_run = 102.587685
scaffold_base_center_diameter = 380.17537
scaffold_top_center_diameter = 175
scaffold_z_min = 25
scaffold_z_max = 245
scaffold_height = 220
scaffold_tube_base_diameter = 50
scaffold_tube_top_diameter = 25
scaffold_top_outer_diameter = 200
helix_start_count_per_direction = 8
helix_surface_angle_degrees_from_straight_cone_line = 30
helix_total_advance_degrees = 60.7280935
scaffold_ring_count = 3
scaffold_ring_z_values = 25, 126.841, 203.24
forklift_cap_disk_depth = 25
forklift_cap_disk_inner_diameter = 150
forklift_cap_disk_outer_diameter = 200
forklift_cap_disk_z0 = 245
forklift_cap_disk_z1 = 270
lower_horseshoe_depth = 25
lower_horseshoe_inner_diameter = 150
lower_horseshoe_outer_diameter = 170
lower_horseshoe_extra_length = 25
lower_horseshoe_arm_width = 10
lower_horseshoe_z0 = 270
lower_horseshoe_z1 = 295
upper_horseshoe_depth = 5
upper_horseshoe_inner_diameter = 70
upper_horseshoe_outer_diameter = 170
upper_horseshoe_extra_length = 25
upper_horseshoe_arm_width = 50
upper_horseshoe_z0 = 295
upper_horseshoe_z1 = 300

assumptions
The puck stem and top heights were not specified, so they are constants in this script.
The total forklift height is fixed at 300 microns.
The base ring OD/ID are derived from the scaffold base centerline and 50 micron base tube diameter.
The crossed spiral tube diameter tapers from 50 microns at the base to 25 microns at the top.
The scaffold angle is applied to the crossed-spiral centerlines.
The scaffold top ID/OD is 150/200 microns, matched to the cap disk.
The lower horseshoe extra length was not specified, so it matches the upper horseshoe extra length.
Horseshoes open toward positive X, with the semicircle on negative X.
STL files¶

Source: nanopositioning_probes/v5/
