Probe v13¶
Dimensions¶

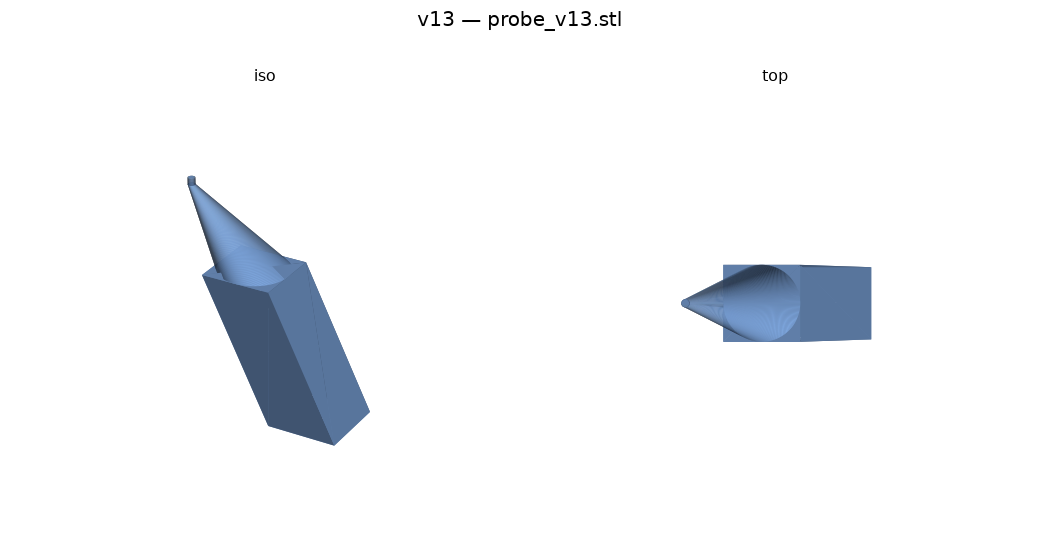

v13 slanted square prism, slanted cone, and top cylinder dimensions, in microns
slanted_square_prism
square_side = 75
bottom_center = (37.5, 0, 0)
top_center = (-37.5, 0, 150)
centerline_dx = -75
centerline_dy = 0
centerline_dz = 150
centerline_angle_degrees_from_normal = 26.5650512
slanted_cone
base_diameter = 75
base_radius = 37.5
base_center = (-37.5, 0, 150)
top_diameter = 7.5
top_radius = 3.75
top_center = (-108.75, 0, 225)
centerline_dx = -71.25
centerline_dy = 0
centerline_dz = 75
centerline_angle_degrees_from_normal = 43.5311993
top_cylinder
diameter = 7.5
radius = 3.75
height = 7.5
center_x = -108.75
center_y = 0
z0 = 225
z1 = 232.5
assumptions
All square and circular cross sections are parallel to the substrate xy plane.
The top cylinder is vertical in z and centered on the slanted cone top circle.
The combined STL contains closed component shells for the prism, cone, and cylinder.
STL files¶
Source: nanopositioning_probes/v13/
