Probe v8¶

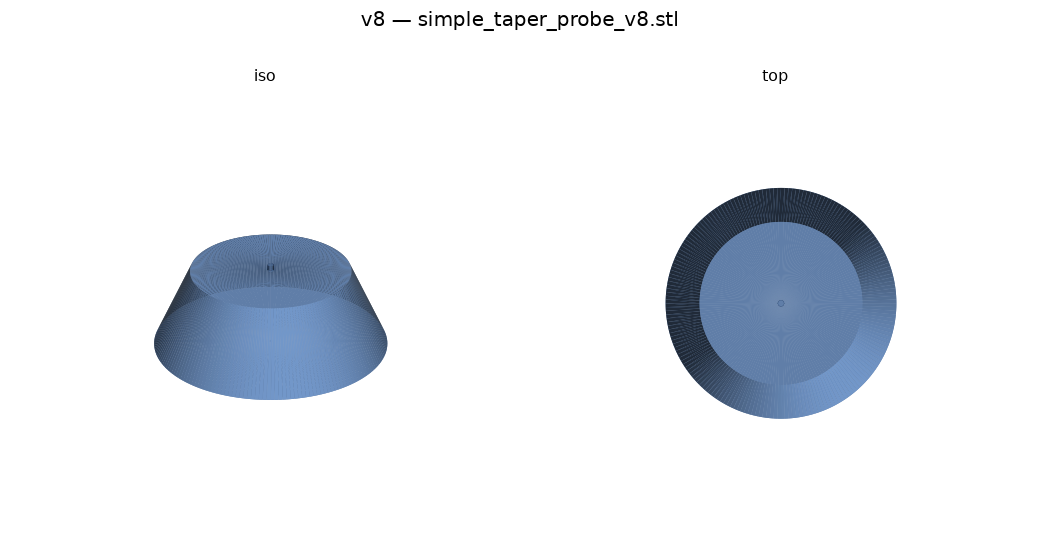

schematic

Dimensions¶

v8 simple taper probe dimensions, in microns

taper_height = 100
sidewall_angle_degrees_from_normal = 25
top_platform_diameter = 200
top_platform_radius = 100
base_diameter = 293.261532
base_radius = 146.630766
pillar_diameter = 7.5
pillar_height = 7.5
pillar_z0 = 100
pillar_z1 = 107.5
total_height = 107.5

assumptions
Width is interpreted as diameter.
The 100 micron height is the conical taper height; the pillar adds 15 microns on top.
The sidewall angle is measured from the substrate normal.

STL files¶

simple_taper_probe_v8.stl

Source: nanopositioning_probes/v8/
