Probe v2¶

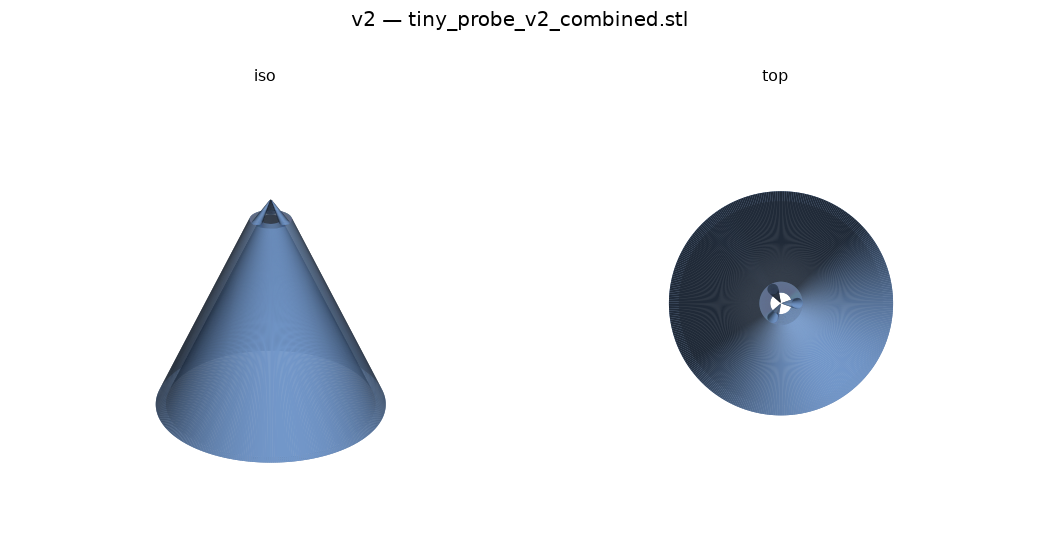

schematic

Dimensions¶

v2 tiny probe dimensions, in microns

sidewall_angle_degrees_from_vertical = 25
wall_thickness = 50
base_height = 1000
top_inner_diameter = 100
top_outer_diameter = 200
solved_base_inner_diameter = 1032.61532
base_outer_diameter = 1132.61532
probe_base_diameter = 50
probe_base_center_diameter = 150
probe_tip_diameter = 3
probe_tip_center_diameter = 10
probe_height = 99.7195718
total_height = 1099.71957

STL files¶

Source: nanopositioning_probes/v2/
