Probe v15

Dimensions

v15 cylinder dimensions, in microns

diameter = 30
radius = 15
height = 30
center_x = 0
center_y = 0
z0 = 0
z1 = 30
segments = 192

assumptions
The cylinder is centered on the z-axis.
The bottom face is at z=0 and the top face is at z=30.

STL files

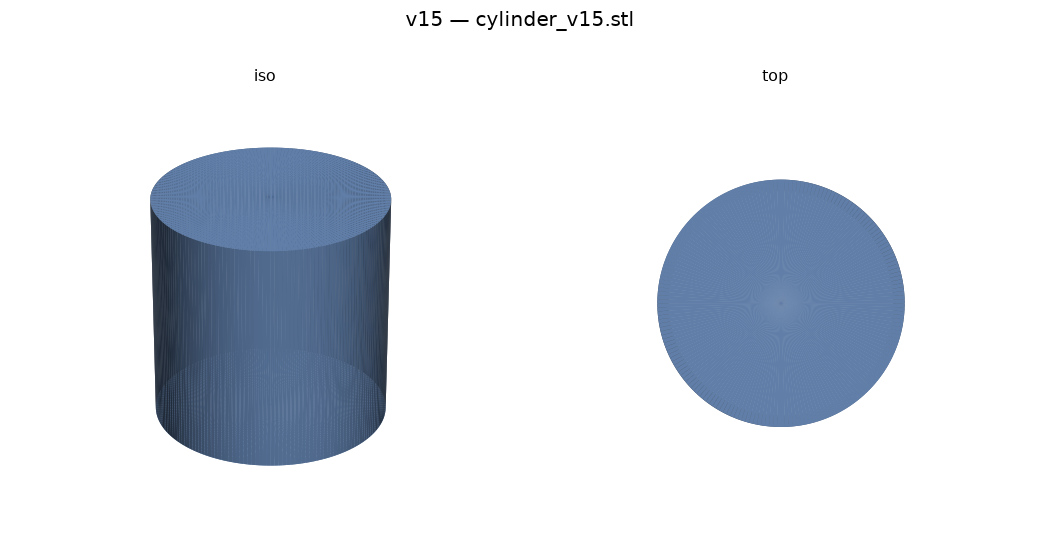

• cylinder_v15.stl

---

Source: nanopositioning_probes/v15/
