Probe v18¶
Dimensions¶
16 simple taper probe dimensions, in microns
taper_height = 75
sidewall_angle_degrees_from_normal = 25
top_platform_diameter = 500
top_platform_radius = 250
base_diameter = 569.946149
base_radius = 284.973074
pillar_diameter = 50
pillar_height = 10
pillar_z0 = 75
pillar_z1 = 85
total_height = 85
assumptions
Width is interpreted as diameter.
The 100 micron height is the conical taper height; the pillar adds 15 microns on top.
The sidewall angle is measured from the substrate normal.

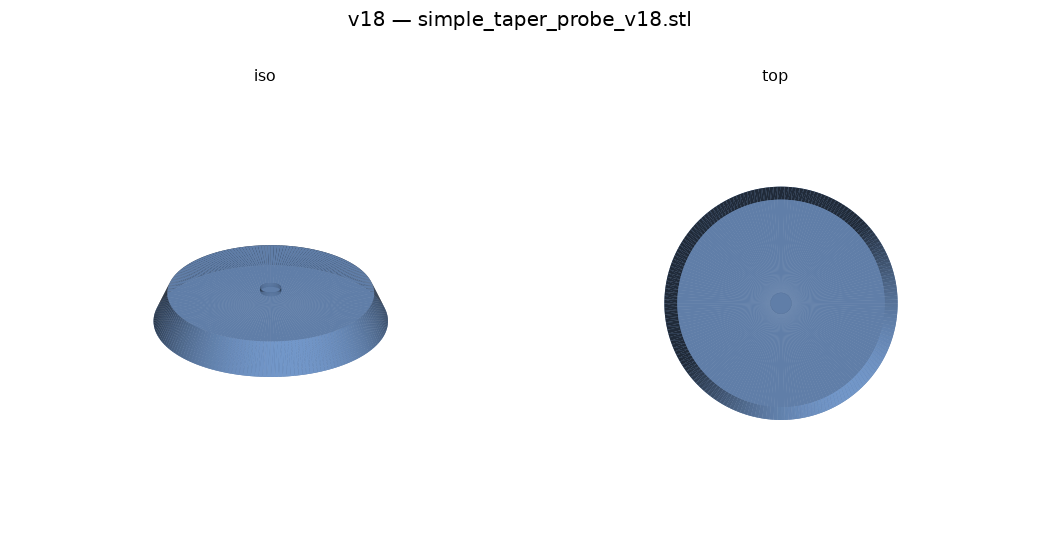

STL files¶
Source: nanopositioning_probes/v18/
