Probe v16¶

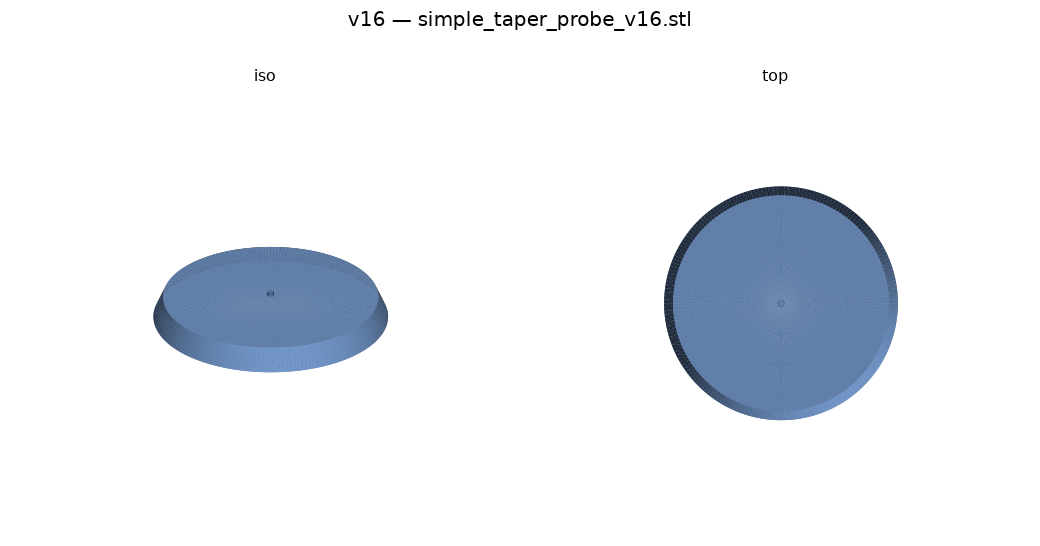

schematic

Dimensions¶

16 simple taper probe dimensions, in microns

taper_height = 50
sidewall_angle_degrees_from_normal = 25
top_platform_diameter = 500
top_platform_radius = 250
base_diameter = 546.630766
base_radius = 273.315383
pillar_diameter = 15
pillar_height = 7.5
pillar_z0 = 50
pillar_z1 = 57.5
total_height = 57.5

assumptions
Width is interpreted as diameter.
The 100 micron height is the conical taper height; the pillar adds 15 microns on top.
The sidewall angle is measured from the substrate normal.

STL files¶

simple_taper_probe_v16.stl

Source: nanopositioning_probes/v16/
