Octopus cavities

Alternate cavity topology, gds-1..9 iterations.

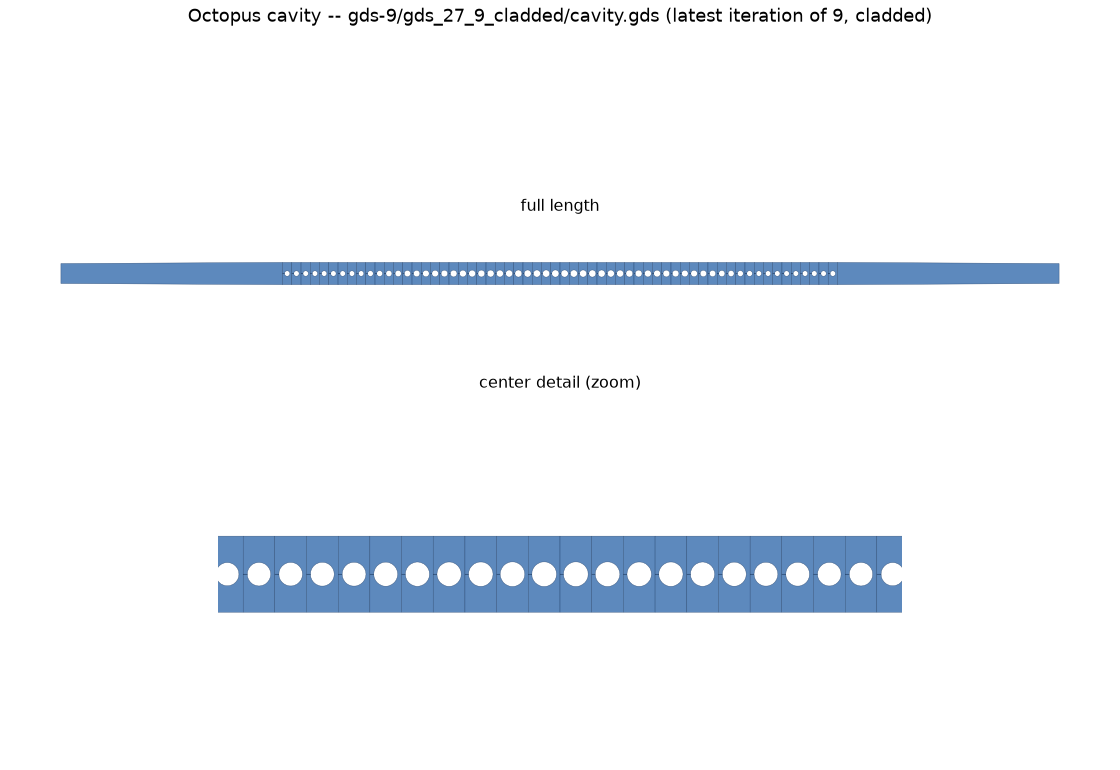

No README in this project yet -- this folder is a raw GDS iteration history (gds/ through gds-9/, plus Beamer mask-writer exports in beamer*/). The geometry below is rendered directly from the latest (cladded) GDS cavity cell.

Results

No FDTD/simulation outputs exist in this tree -- it is a pure layout-iteration project.

Downloads

• cavity.gds (latest cavity cell, cladded)
• dev_27_9.gds (full assembled device)

275 GDS files total across gds/ through gds-9/; only the latest iteration is linked here.

---

Source: device_architectures/v0/octopus_cavities/
