Probe v9

Dimensions

v9 taper pedestal with slanted tapered cone probe dimensions, in microns

taper_height = 100
sidewall_angle_degrees_from_normal = 25
top_platform_diameter = 150
top_platform_radius = 75
base_diameter = 243.261532
base_radius = 121.630766
probe_base_diameter = 10
probe_base_radius = 5
probe_base_center_offset_from_pedestal_center = 10
probe_base_z = 100
probe_tip_diameter = 2
probe_tip_radius = 1
probe_tip_center_offset_from_pedestal_center = 6
probe_tip_z = 105
probe_height_z = 5
probe_center_offset_delta = -4
probe_centerline_angle_degrees_from_normal = 38.6598083
total_height = 105

assumptions
Width is interpreted as diameter.
The 100 micron height is the conical pedestal taper height.
The pedestal sidewall angle is measured from the substrate normal.
The probe base and tip circles are parallel to the substrate.
The probe base and tip center offsets are measured from the pedestal center along +x.

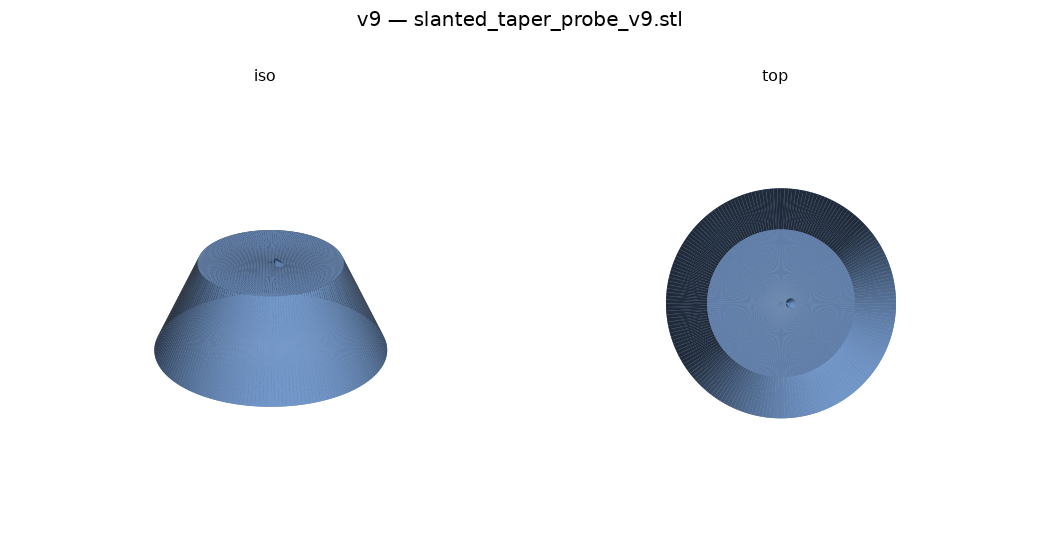

STL files

• slanted_taper_probe_v9.stl

---

Source: nanopositioning_probes/v9/
