Probe v3¶

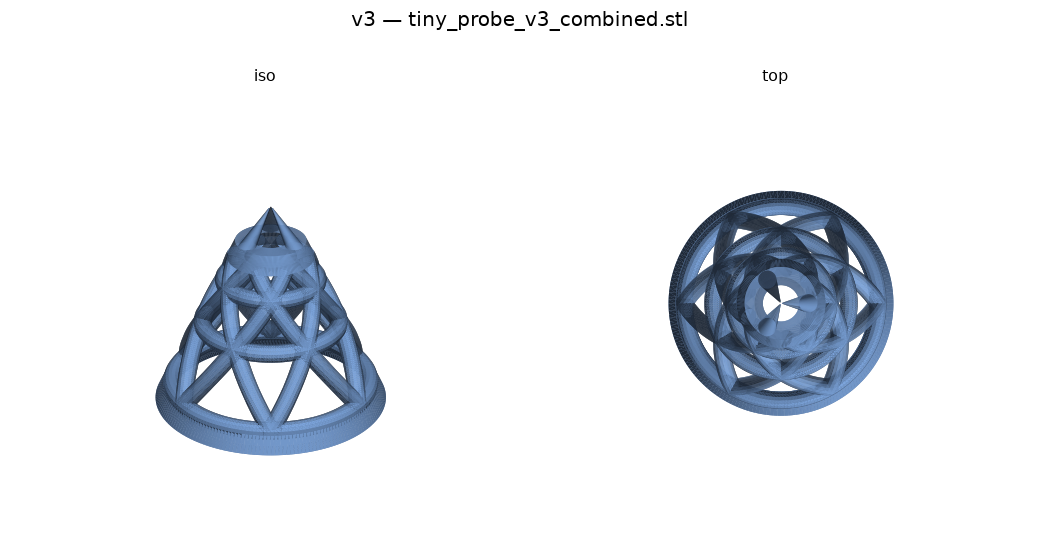

schematic
Dimensions¶

v3 tiny probe scaffold dimensions, in microns

sidewall_angle_degrees_from_vertical = 25
wall_thickness = 50
tube_diameter = 50
base_height = 500
bottom_solid_band_height = 50
top_solid_band_height = 50
scaffold_lattice_z_min = 50
scaffold_lattice_z_max = 450
scaffold_lattice_height = 400
scaffold_ring_count = 3
scaffold_ring_intersection_advance_step_degrees = 30
helix_start_count_per_direction = 6
helix_surface_angle_degrees_from_straight_cone_line = 30
helix_total_advance_degrees = 83.2625895
top_inner_diameter = 100
top_outer_diameter = 200
solved_base_inner_diameter = 566.307658
base_outer_diameter = 666.307658
probe_base_diameter = 50
probe_base_center_diameter = 150
probe_tip_diameter = 3
probe_tip_center_diameter = 10
probe_height = 99.7195718
total_height = 599.719572

scaffold_ring_z_values = 50, 244.474, 377.033
scaffold_ring_helix_advance_degrees = 0, 30, 60
STL files¶

Source: nanopositioning_probes/v3/
