Probe v14¶

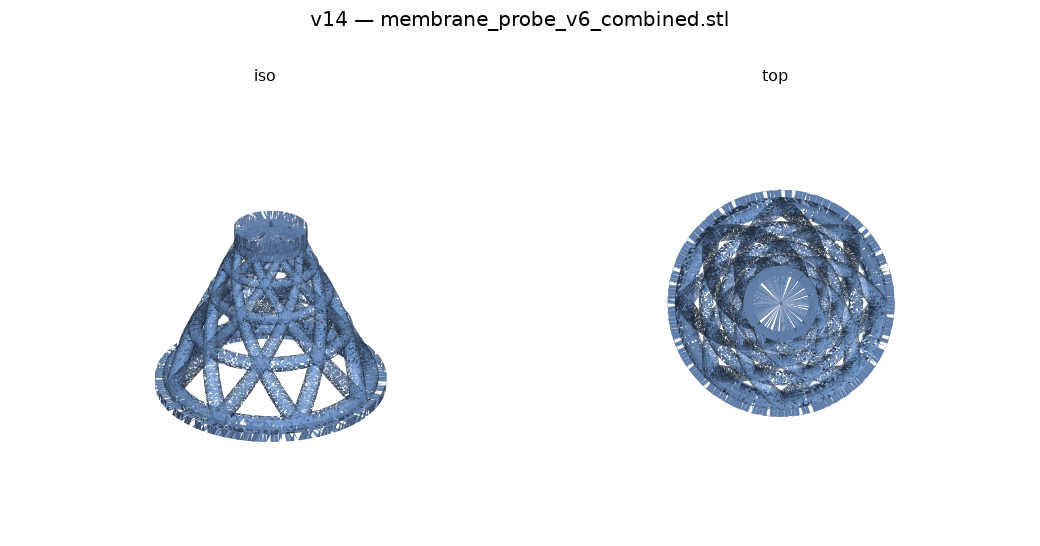

schematic
Dimensions¶

v6 membrane probe dimensions, in microns

total_height = 500.673075
base_depth = 25
base_inner_diameter = 503
base_outer_diameter = 650
base_contact_area = 133117.92
scaffold_base_outer_diameter = 583
scaffold_angle_degrees_from_normal = 25
scaffold_z_min = 25
scaffold_z_max = 435.673075
scaffold_height = 410.673075
scaffold_radial_run = 191.5
scaffold_tube_base_diameter = 50
scaffold_tube_top_diameter = 25
scaffold_top_inner_diameter = 150
scaffold_top_outer_diameter = 200
helix_start_count_per_direction = 8
helix_surface_angle_degrees_from_straight_cone_line = 30
helix_total_advance_degrees = 90.7636256
scaffold_ring_count = 5
scaffold_ring_z_values = 25, 174.477, 286.611, 370.73, 433.833

top_ring_depth = 25
top_ring_inner_diameter = 150
top_ring_outer_diameter = 200
top_ring_z0 = 435.673075
top_ring_z1 = 460.673075
membrane_diameter = 200
membrane_thickness = 25
membrane_z0 = 460.673075
membrane_z1 = 485.673075
center_cylinder_diameter = 7.5
center_cylinder_depth = 15
center_cylinder_z0 = 485.673075
center_cylinder_z1 = 500.673075

assumptions
The base ring is widened to 650 micron OD with the same 503 micron ID and 25 micron depth.
The scaffold still starts from the original 583 micron OD cone footprint so height and probe placement are unchanged.
The scaffold tube diameter tapers from 50 microns at the base to 25 microns at the top.
The scaffold angle is exactly 25 degrees from normal; total height is derived from that angle.
The thick top ring is 25 microns tall, matching the v5 cap-ring convention.
The membrane is a solid 200 micron OD cylinder on top of the ring.
The 7.5 micron center cylinder sits on top of the membrane.
STL files¶

Source: nanopositioning_probes/v14/
