Probe v17¶
Dimensions¶

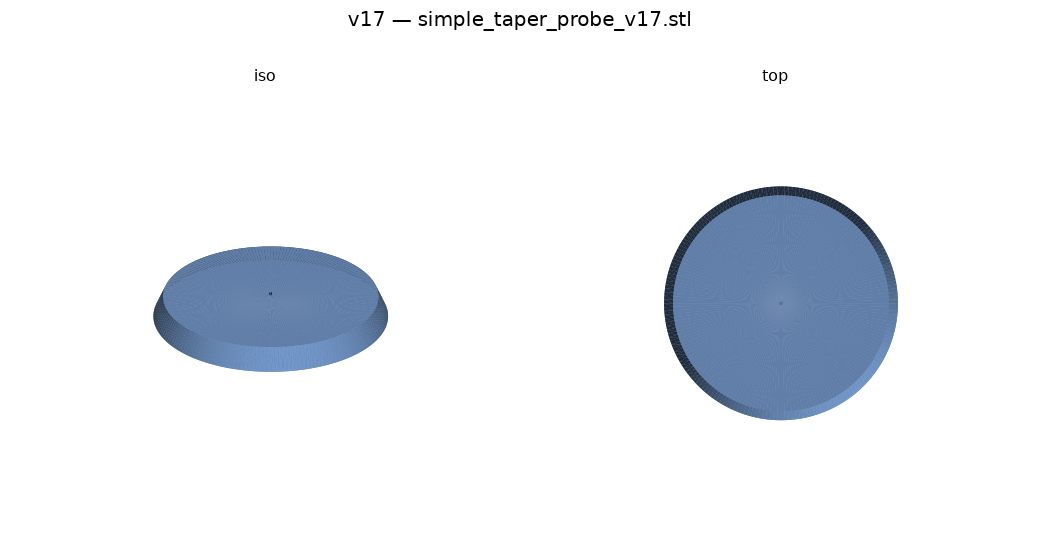

16 simple taper probe dimensions, in microns
taper_height = 75
sidewall_angle_degrees_from_normal = 25
top_platform_diameter = 750
top_platform_radius = 375
base_diameter = 819.946149
base_radius = 409.973074
pillar_diameter = 7.5
pillar_height = 7.5
pillar_z0 = 75
pillar_z1 = 82.5
total_height = 82.5
assumptions
Width is interpreted as diameter.
The 100 micron height is the conical taper height; the pillar adds 15 microns on top.
The sidewall angle is measured from the substrate normal.
STL files¶
Source: nanopositioning_probes/v17/
