Probe v10

Dimensions

v10 sector ring taper dimensions, in microns

z_min = 0
z_max = 100
height = 100
phi_min_degrees = -60
phi_max_degrees = 60
phi_span_degrees = 120
inner_angle_degrees_from_normal = 30
outer_angle_degrees_from_normal = 60
top_sector_area = 45
top_inner_radius = 0
top_outer_radius = 6.55529058
bottom_inner_radius = 57.7350269
bottom_outer_radius = 179.760371
bottom_sector_area = 30348.2644

assumptions
Angles are measured wrt the substrate normal.
The requested option 1 is used: inner surface is 30 degrees and outer surface is 60 degrees.
The inner cone point is at z=100 and radius 0.
The outer cone is offset above z=100 so the z=100 section is a 120 degree sector with area 45.
The structure is bounded by radial side walls at phi=-60 degrees and phi=60 degrees.

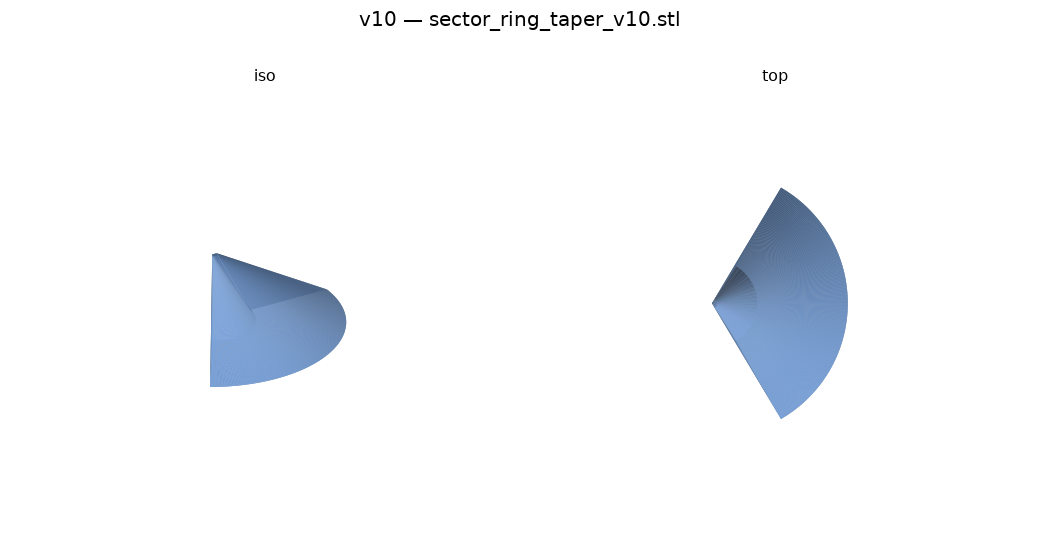

STL files

• sector_ring_taper_v10.stl

Cross-sections

---

Source: nanopositioning_probes/v10/
