Probe v4¶
Dimensions¶
v4 tiny probe scaffold dimensions, in microns
sidewall_angle_degrees_from_vertical = 25
wall_thickness = 50
tube_diameter = 50
base_height = 500
bottom_solid_band_height = 50
top_solid_band_height = 50
top_bevel_angle_degrees_from_xy = 30
top_bevel_radial_run = 50
top_bevel_z_drop_outer_edge = 28.8675135
top_bevel_inner_edge_z = 500
top_bevel_outer_edge_z = 471.132487
scaffold_lattice_z_min = 50
scaffold_lattice_z_max = 450
scaffold_lattice_height = 400
scaffold_ring_count = 3
scaffold_ring_intersection_advance_step_degrees = 30
helix_start_count_per_direction = 6
helix_surface_angle_degrees_from_straight_cone_line = 30
helix_total_advance_degrees = 72.1136667
top_inner_diameter = 150
top_outer_diameter = 250
solved_base_inner_diameter = 616.307658
base_outer_diameter = 716.307658
probe_count = 3
probe_angles_degrees = 0, 120, 240
probe_base_width = 25
probe_tip_width = 3
probe_base_radius = 75
probe_tip_center_diameter = 10
probe_length_radial = 70
probe_depth = 10
probe_ramp_angle_degrees = 30
probe_ramp_start_from_tip = 13
probe_ramp_length = 10
probe_flat_tip_length = 3
probe_ramp_rise = 5.77350269
probe_raised_tip_top_z = 505.773503
probe_support_shape = hollow_equilateral_triangle_beams
probe_support_beam_count = 3
probe_support_beam_length = 50
probe_support_beam_width = 5
probe_support_rotation_degrees = 60
probe_support_frame_inradius = 14.4337567
probe_support_frame_circumradius = 28.8675135
probe_support_depth = 10
total_height = 505.773503
scaffold_ring_z_values = 50, 261.543, 405.736
scaffold_ring_helix_advance_degrees = 0, 30, 60

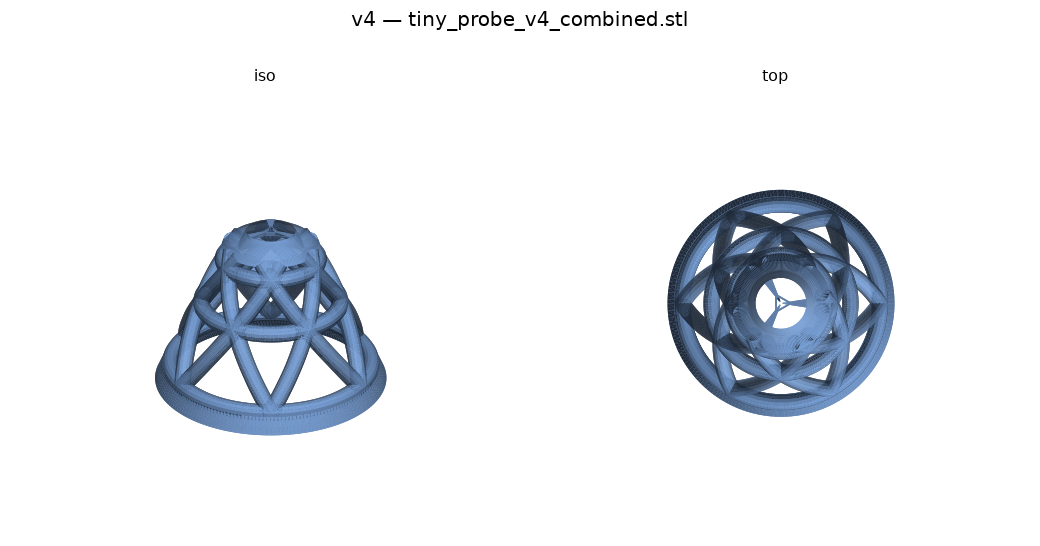

STL files¶
Source: nanopositioning_probes/v4/
